Exhaust system, location/task/design/function - GF49.00-P-2000F

ENGINE 104, 111, 112, 113, 119, 120, 137, 166 (except, 112.96, 113.99)

Shown on model 203 with engine 112

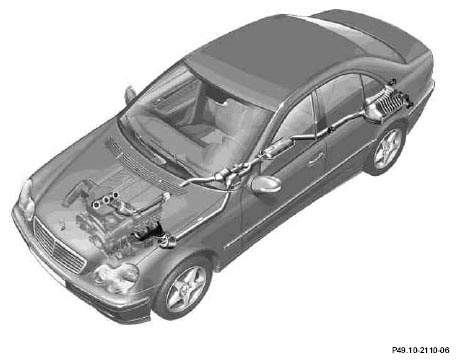

Fig 1: Identifying Exhaust System Location - Shown On Model 203 With Engine 112

Exhaust system position	The exhaust system is located at the underfloor of the vehicle.
Exhaust system task	The tasks of the exhaust system are: Directing the exhaust gases with a slight backpressure to the rear of the vehicle Absorbing the noise of the exhaust gases Optimizing power output of engine Emission control by means of TWC.
Exhaust system design	Engine 119 in Model 210	GF49.00-P-2000-01F
	Engine 112, 113 in Model 215, 220	GF49.00-P-2000-01K
	Engine 137 in model 215, 220	GF49.00-P-2000-01L
	Engine 113 in model 230	GF49.00-P-2000-01R
Exhaust system function	The exhaust system muffles the exhaust gases which flow out of the combustion chamber with severe pulses in order to ensure that a certain noise level is not exceeded and that the exhaust gases do not encounter any major resistance when flowing off. For noise insulation, the components are partially double-walled, shields reduce the heat dissipation to the underfloor.
