Command valve, function - GF27.60-P-5138-04G
Transmission 722.6
1-2/4-5 command valve shown

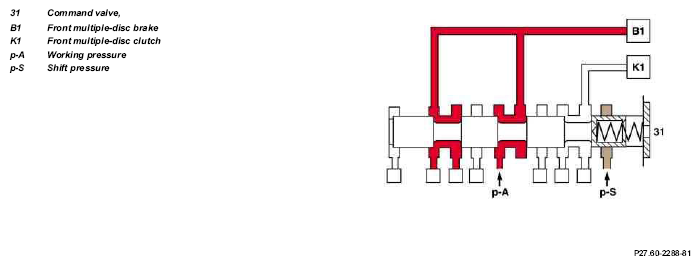

Stationary phase (B1 engaged, K1 disengaged)
1-2/4-5 command valve shown

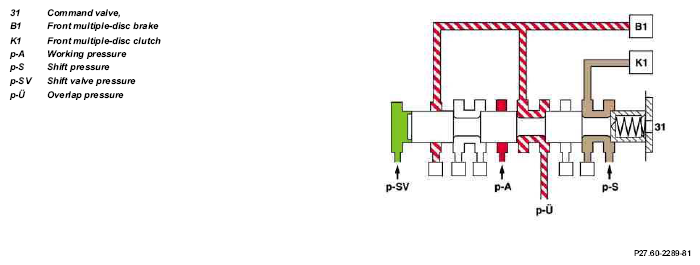

Shift phase (B1 disengaging, K1 engaging)
Operation
When the end face is unpressurized (stationary phase), the working pressure is directed to the actuated shift element.
If the end face of the command valve (31) is subjected to shift valve pressure (p-SV) (shift phase), then the shift pressure (p-S) is switched to the engaging element and the overlap pressure (p-U) is switched to the disengaging element.
