Front seat adjustment motor group, location/function - GF91.29-P-2103S: Notes
Models 215, 220

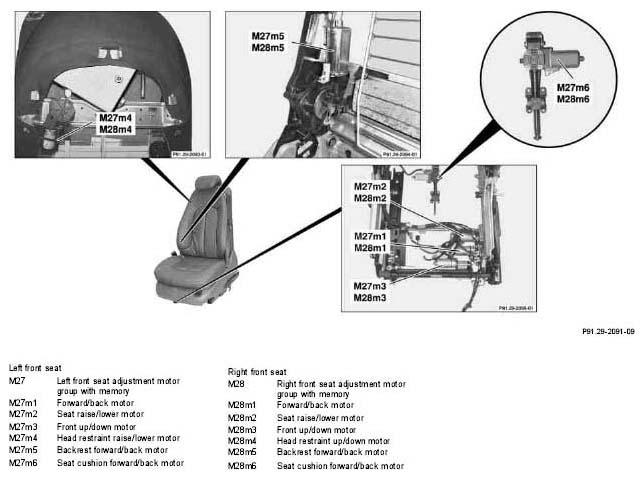

Location of front seat adjustment motor group, shown on model 215
| Front seat adjustment motor group, location | The six servo DC motors are located in the backrest (at the side and in the back) and under the respective seat (model 215) | ||
| Model 220 | GF91.29-P-2103-01S | ||
| Front seat adjustment motor group, function | The six servo DC motors for adjusting the left/ right front seat are actuated by the left front seat adjustment control module with memory (N32/1)/right front seat adjustment control module with memoryN32/2)They have one Hall sensor each for position recognition. |
