Modulating Pressure Regulating Solenoid Valve, Design
Structure

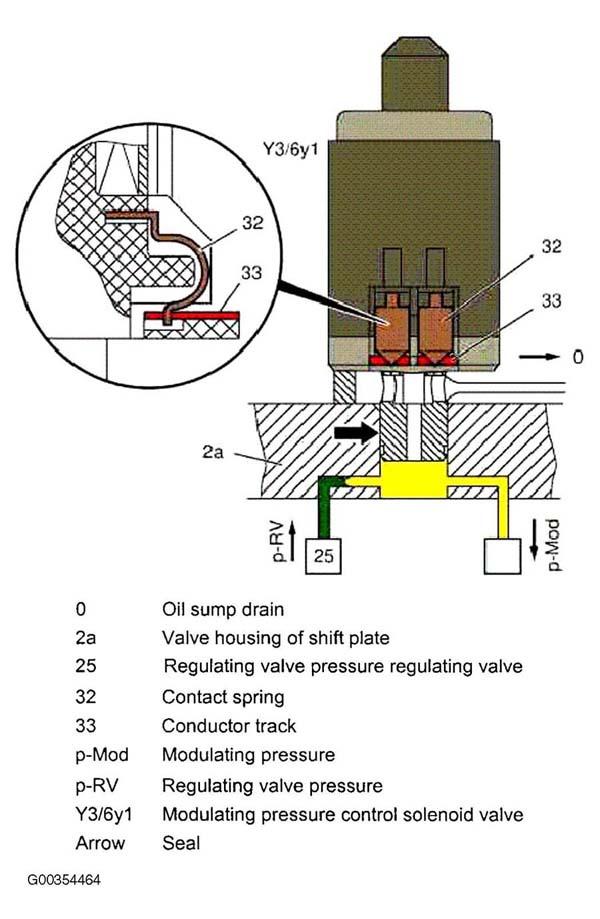

The modulating pressure regulating solenoid valve (Y3/6y1) has an interference fit and is sealed off to the valve body of the shift plate (2a) by a seal (arrow). See Fig 1.
The contact springs (32) on the modulating pressure regulating solenoid valve (Y3/6y1) engage in a slot in the conductor tracks (33). The force of the contact spring (32) ensures safe contacts.
