Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location

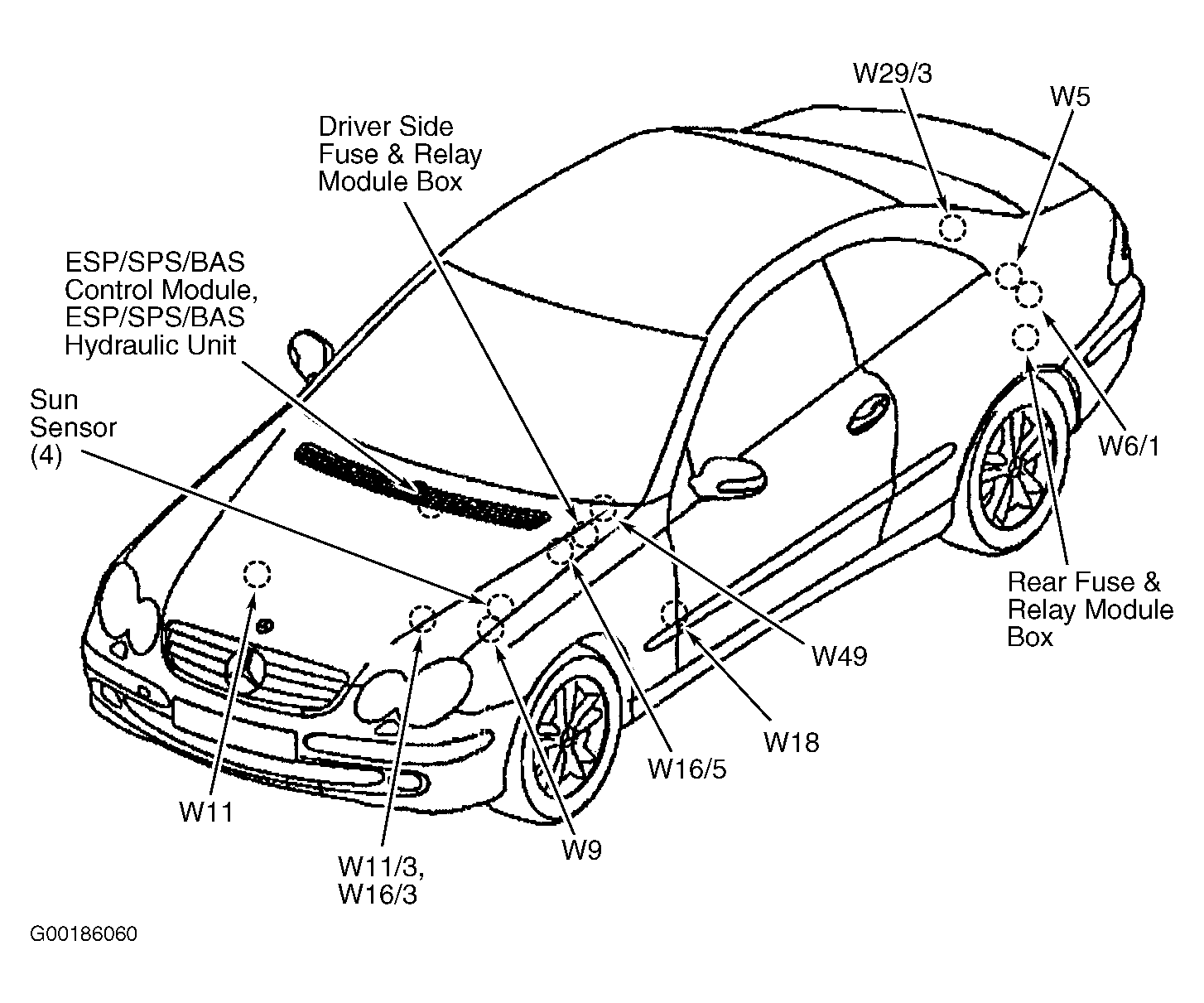

Driver Side Fuse & Relay Module Box At left rear corner of engine compartment. See Figure.
Interior Fuse Box At left end of dash.

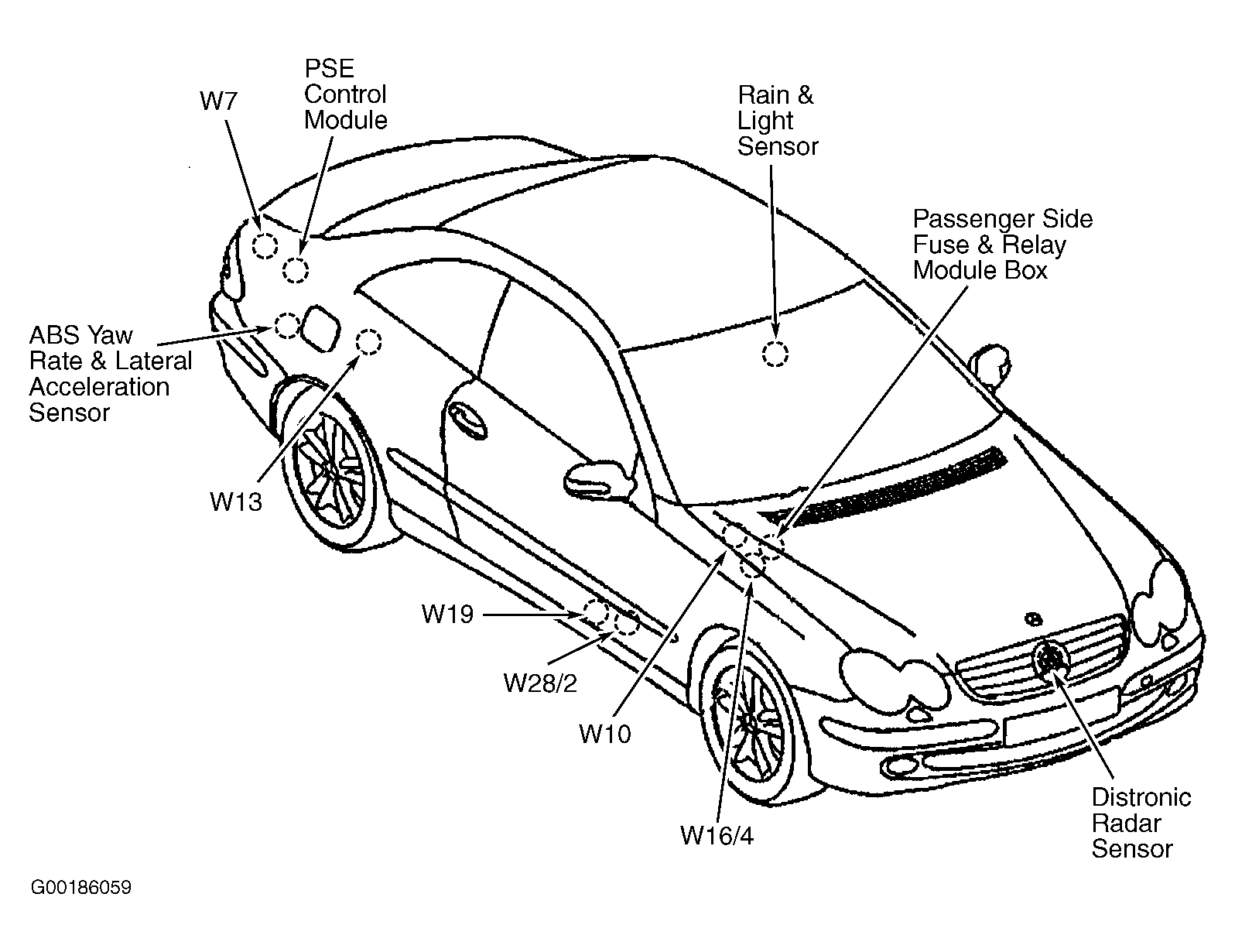

Passenger Side Fuse & Relay Module Box At right rear corner of engine compartment. See Figure.
Rear Fuse & Relay Module Box At left front of luggage compartment. See Figure.
