A/C Push Button Control Unit: Notes

WARNING: This page is about a different car, the 2001 Mercedes-Benz SL500 and 2000 Mercedes-Benz SL500. However, it is still accessible from the selected car via links, so may be relevant.

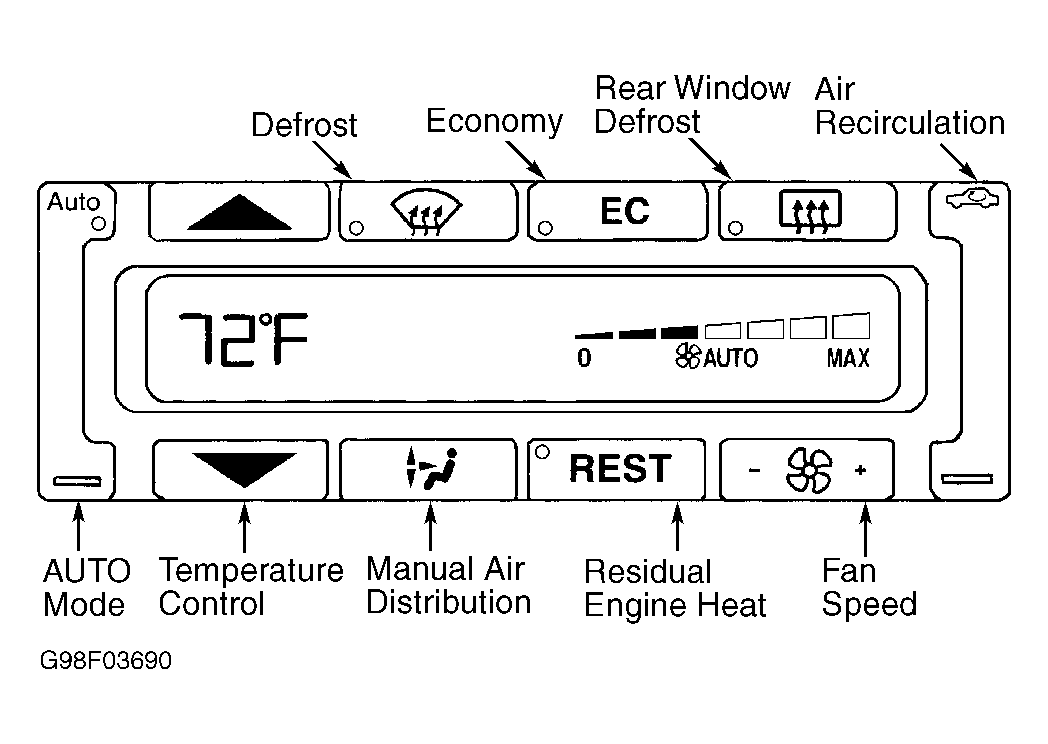

The A/C push button control unit consists of temperature control push buttons, mode selection push buttons, and fan control push buttons. See Figure.
