Air Control Module

WARNING: This page is about a different car, the 2001 Mercedes-Benz SL500 and 2000 Mercedes-Benz SL500. However, it is still accessible from the selected car via links, so may be relevant.

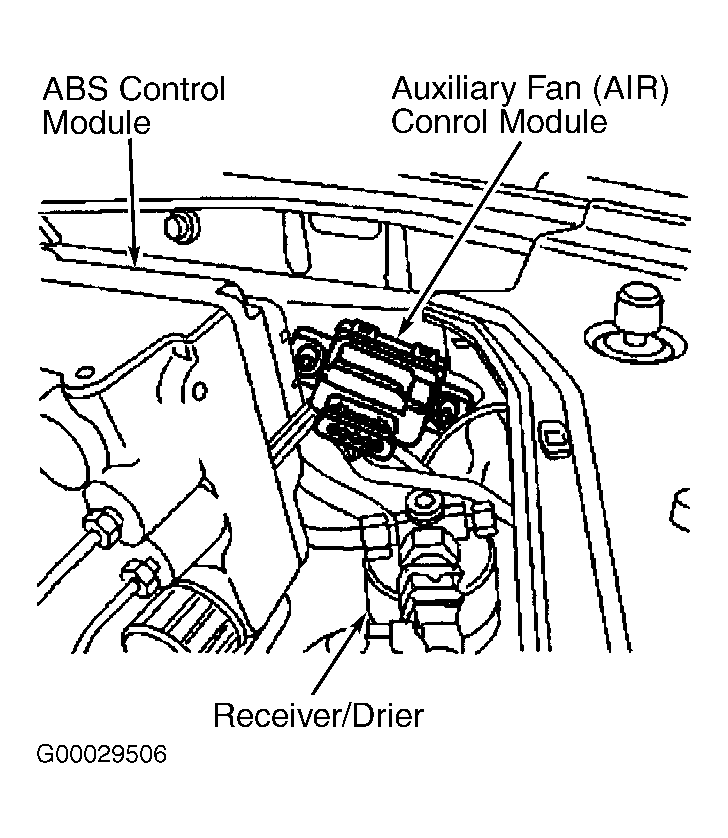

AIR control module is located in left front corner of engine compartment. See Figure. Turn ignition off. Unhook and disconnect Anti-Lock Brake System (ABS) control module electrical connector. Unhook and disconnect AIR control module electrical connector. Remove AIR control module mounting screws. Remove AIR control module. To install, reverse removal procedure.
