Splash bowl, location/task/function - GF47.10-P-3101C
MODEL 210 with ENGINE 104, 111, 112, 113, 119, 602, 604, 605, 606, 611, 612, 613
MODEL 129 as of 1.10.95 with ENGINE 104, 112, 113, 119, 120
MODEL 140 as of 1.4.95 with ENGINE 104, 119, 120, 606
MODEL 170 with ENGINE 111
MODEL 220 with ENGINE 112, 113, 137, 613, 628
MODEL 215 with ENGINE 113, 137
MODEL 211 with ENGINE 628
Shown on model 220
Shown on model 211

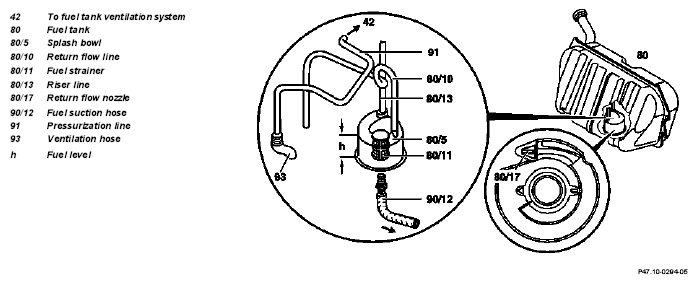

| Swirl pot location | The swirl pot is mounted in the fuel tank. | ||

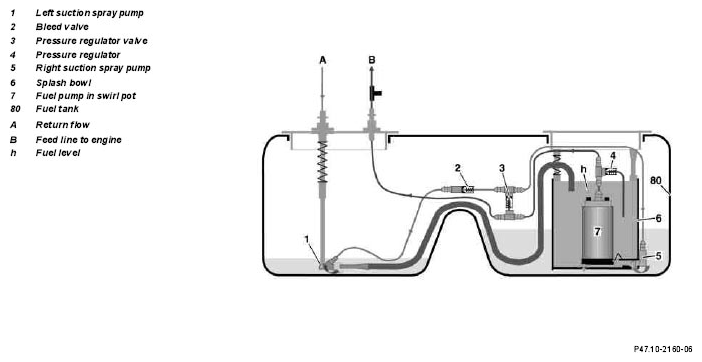

| Splash bowl task | Supplying the engine with fuel in the event of a low fuel level in the fuel tank and during lengthy cornering | ||
| Splash bowl function | The fuel return flow stream flows out of the return flow nozzle (80/17) into the splash bowl at a high velocity when the fuel pump is operated. As a result, the fuel around the return flow nozzle (80/17) is also entrained and carried into the splash bowl. |
