Model Year 2001-2002; Digital Tele Aid Control Module (82.95/567)

MODEL YEAR 2001-2002; DIGITAL TELE AID CONTROL MODULE

TECHNICAL SERVICE BULLETIN

SUBJECT

MODEL 210.065/082/070/083/074 with SA CODE (349)

MODEL YEAR 2001-2002

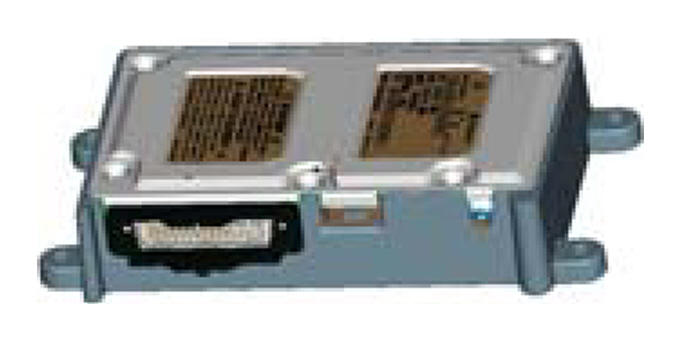

DIGITAL TELE AID CONTROL MODULE

SERVICE INFORMATION

Notes on D2B optical fibers

• Optical fibers damage easily-handle optical fibers with care to prevent cuts, nicks, abrasions, and crushing.
• Optical fiber "ring configurations" must form a closed loop to function (i.e. couple the input of a component with the output of the preceding component).
• Identify D2B optical fibers by their orange, semi-rigid insulation.
• Electromagnetic interference (EMI) from bundled vehicle electrical harnesses does not affect optical fibers.
• The digital Tele Aid control module for vehicles equipped with ECALL2 has a D2B port. Do not connect the D2B port of the digital Tele Aid control module if the existing analog Tele Aid control module has no D2B port. Include the digital Tele Aid control module in the D2B ring configuration only if the existing analog Tele Aid control module has a D2B port.

Model Series	Tele Aid	MY 01	MY 02	MY 03	MY 04	MY 05	MY 06
	EC2D	X	X

• Tele Aid Location:  Behind Left Rear trunk paneling
• Estimated Physical Installation Time:  0.9 h
• Opcode:  82-9621

A. PREPARING FOR THE INSTALLATION

1. Read these installation instructions in their entirety before proceeding.
2. To get access to the unit, see WIS document AR82.95-P-0005B, "Removing and installing TELE AID emergency call system control module" (do not remove the unit at this point).
   NOTE: The TELE AID control module in the referenced WIS document shows an ECALL1 not an ECALL2.
3. Plug the Star Diagnosis in the OBD Diagnosis Port. The OBD diagnostics port is a 38-pin port in the wiring harness compartment in the right, rear corner under the hood (Fig 2 and Fig 3 ).

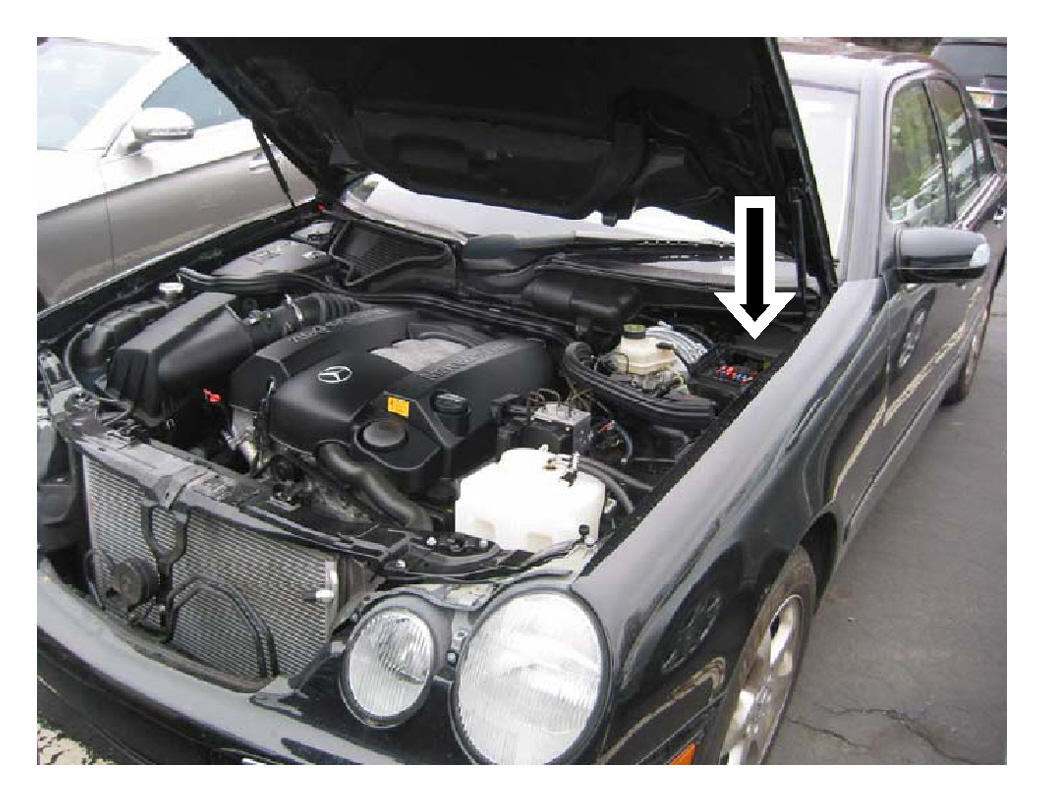

   Fig 2: OBD Diagnosis Port Location

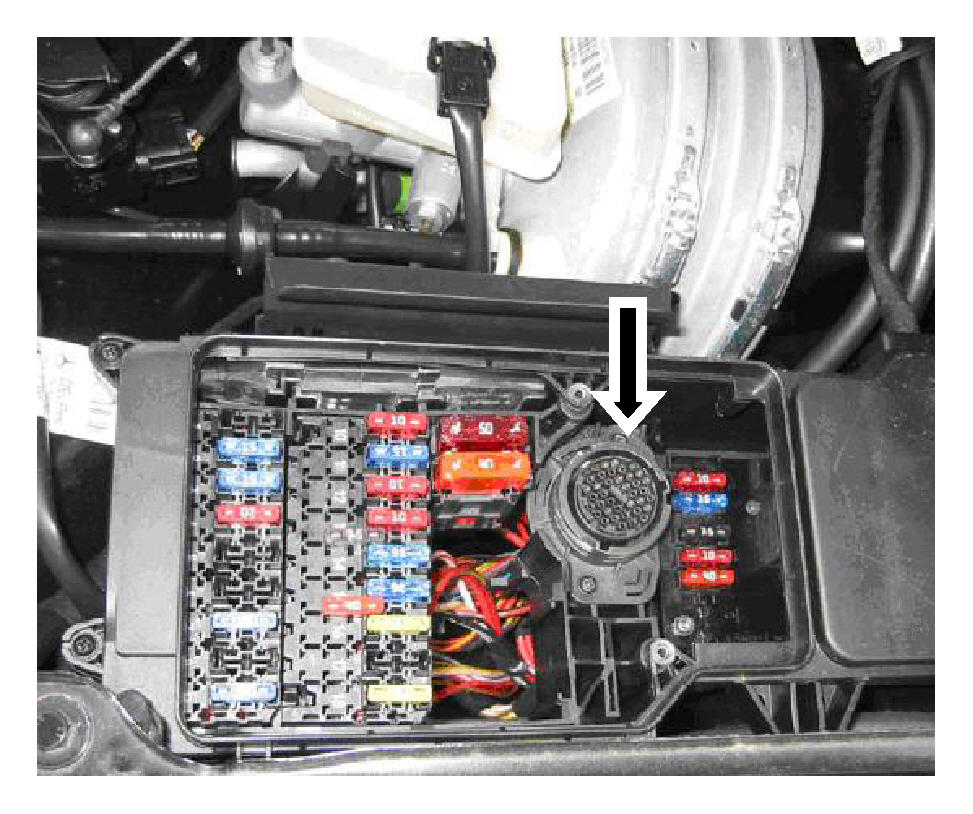

   Fig 3: OBD Diagnosis Port



B. RETROFITTING THE DIGITAL TELE AID CONTROL MODULE

1. Leave the analog Tele Aid control module installed to perform this step. Exchange the analog Tele Aid control module with the digital Tele Aid control module only when prompted by Star Diagnosis.

   For automatically version coding the Tele Aid control module, select in Star Diagnosis:

   Control units > Information and communication > Audio, video, navigation and telematics > Tele Aid > Initial Startup > Initial Startup with automatic takeover of settings of previous control unit or, for manually version coding the Tele Aid control module, select in Star Diagnosis:

   Control units > Information and communication > Audio, video, navigation and telematics > Tele Aid > Initial Startup > Initial Startup with manual settings input for new control unit

   See Section C, to better understand how the manual and/or automatic replacements have to be completed in Star Diagnosis.

2. Remove the left side panel in the trunk. (Fig 4).
3. Remove the analog Tele Aid control module (Arrow, Fig 5) from behind the panel in the left side of the trunk by removing the screws (Arrows, Fig 6).
4. Disconnect the cables from the analog Tele Aid control module:
   1. GPS antenna connector (A, Fig 6)
   2. Power supply connector (B, Fig 6)
   3. D2B connector, if applicable (C, Fig 6)

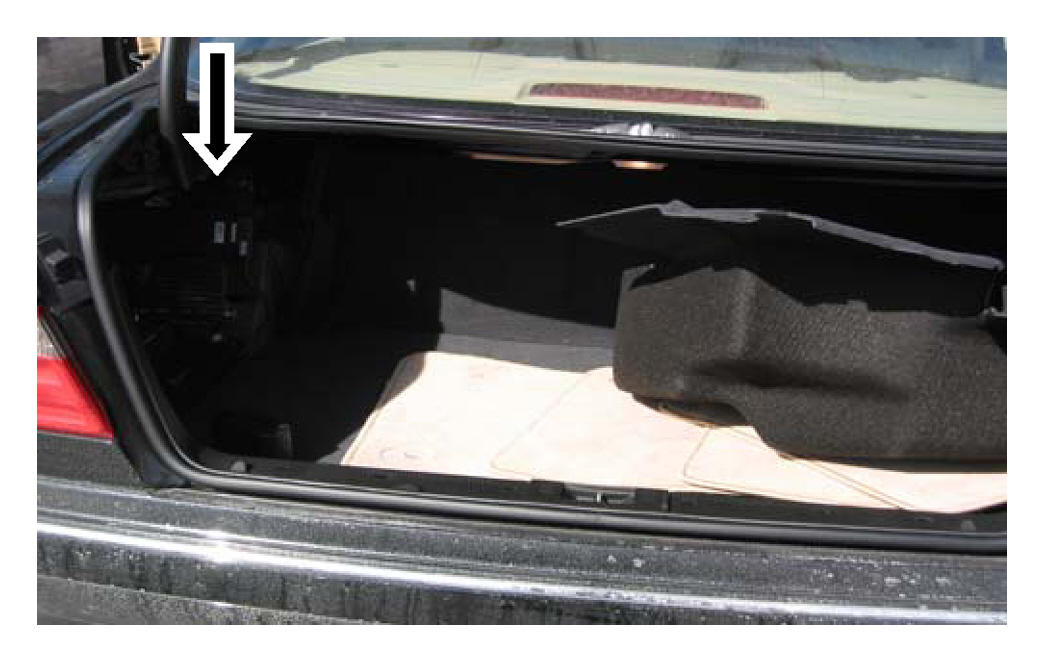

      Fig 4: Left Side Panel In Trunk


5. Install the digital Tele Aid control module using the previously removed screws.
6. Connect the cables to the digital Tele Aid control module:
   1. GPS Antenna connector (A, Fig 6)
   2. Power supply connector (B, Fig 6)
   3. D2B connector, if applicable (C, Fig 6)
      NOTE: Incorrect installation of connectors can result in bent pins.

      Bent pins will result in component malfunction or failure.

      Inspect connectors before and after installation.

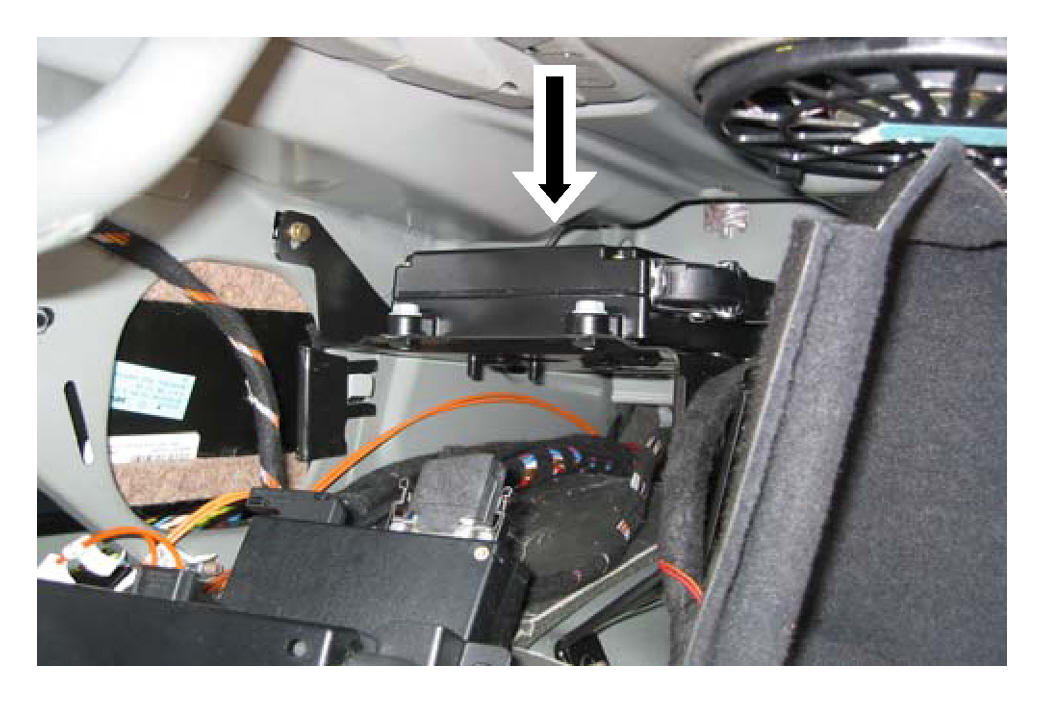

      Fig 5: Analog Tele Aid Control Module Behind Panel In Trunk

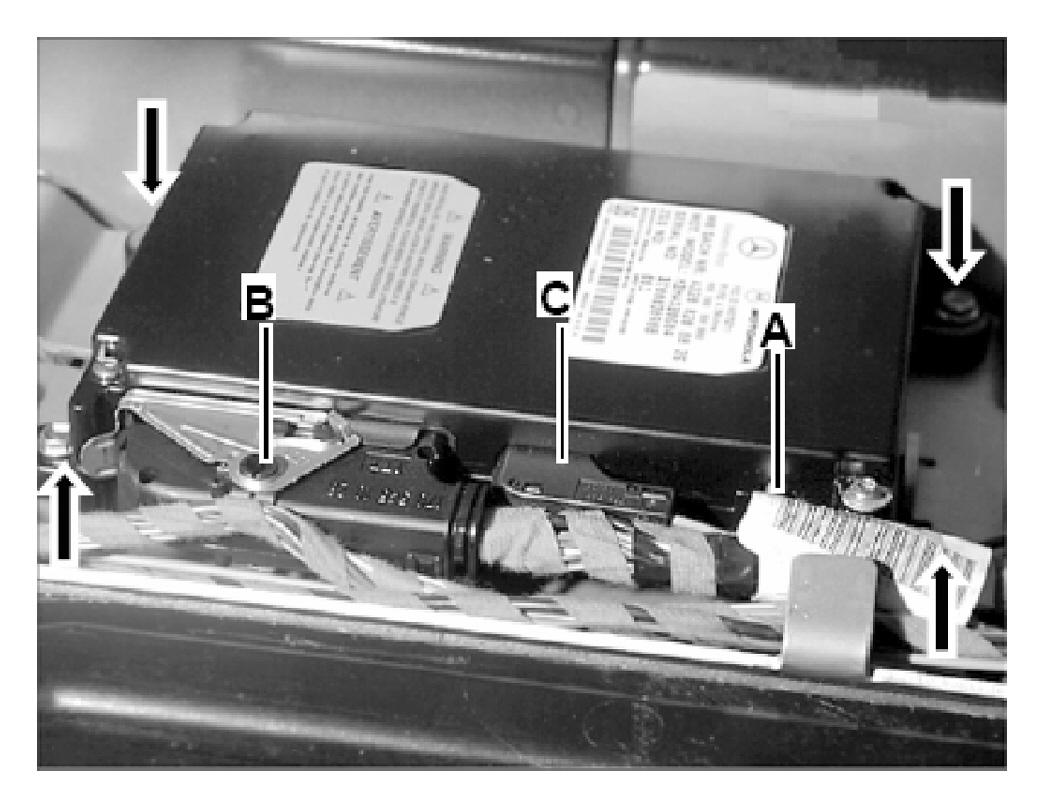

      Fig 6: Tele Aid Control Module Connections



C. VERSION CODING

1. The retrofitted digital Tele Aid control module is not activated. Activate the digital Tele Aid control module by following the Preliminary Draft of "DAS Procedure - Digital Tele Aid Control Module Retrofit" posted on Star TekInfo.

   Also see posted on Star TekInfo, the Preliminary Draft of "MMI Overview - Digital Tele Aid Control Module Retrofit"

   NOTE:

   • The Load Speaker impedances in this car model were different than expected, that is why the impedance check function in TeleAid is disabled for this particular car model.

D. PARTS INFORMATION

Qty.	Part Name	Part Number/Exchange
1	Control module, digital Tele Aid	BQ 482 0123
