R/P Lock, Function (With Touch Shift)

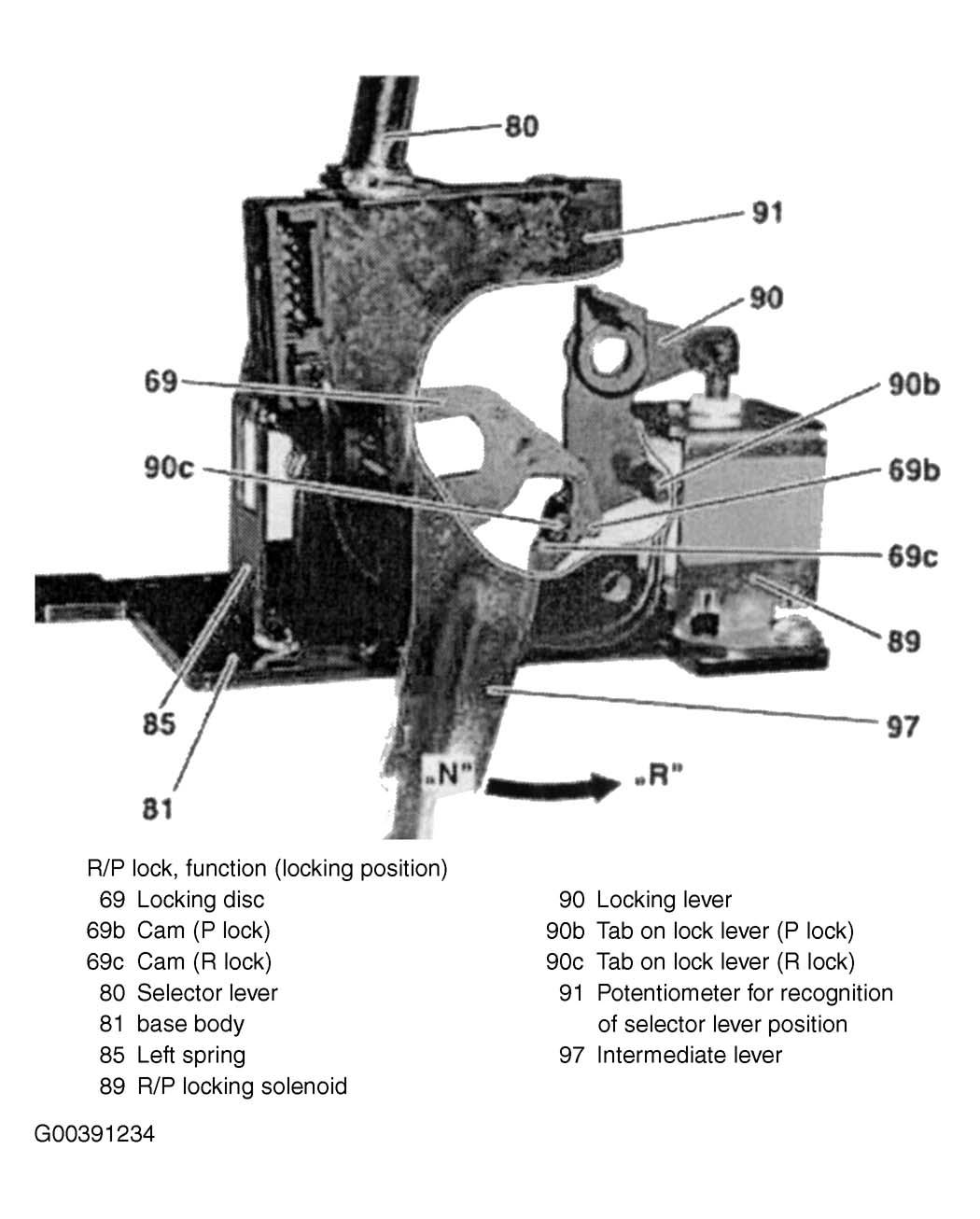

Fig 1: R/P Lock, Function (Locking Position)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function Of R Lock

Above a speed of approximately 10km/h the R/P locking solenoid (89) is actuated by the electronic selector lever module control module (N15/5). See Fig 1. The R/P lock lever (90) is turned to the lock position (shift from "N" to "R"). The tab on the lock lever (R lock) (90c) locks (R-lock (69c) the locking disc (69). The selector lever (80) cannot be shifted into selector lever position "R".

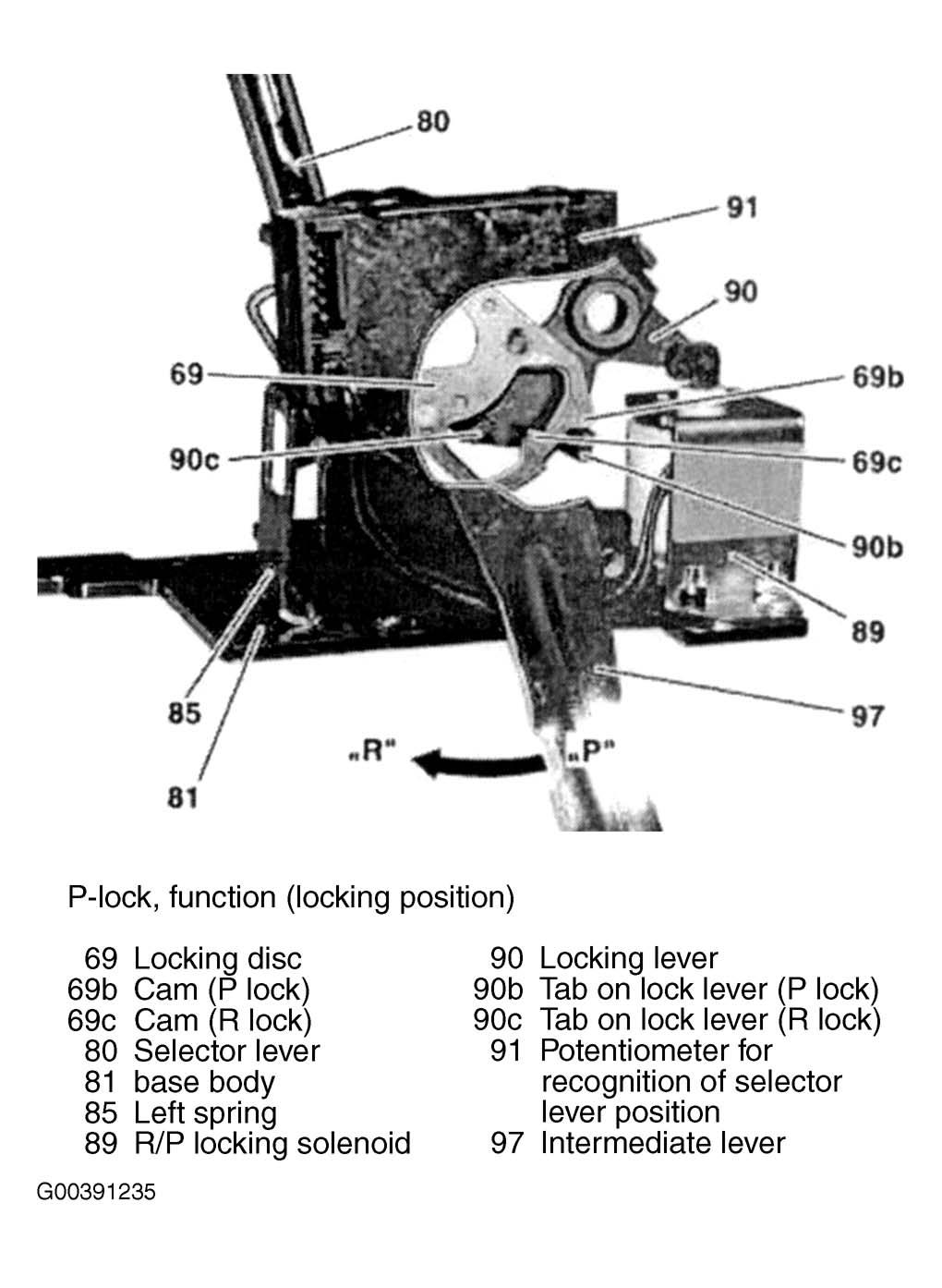

Fig 2: P-Lock, Function (Locking Position)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function Of P Lock

The selector lever position "P" is locked whenever R/P locking solenoid (89) is not actuated by the electronic selector lever module control module (N15/5). See Fig 2. The prerequisites for this are as follows:

1. No voltage supply to the electronic selector lever module control module (N15/5).
2. Brake pedal not depressed.

Under these conditions the locking lever (90) is in the locking position (P-lock).

The web on the locking lever (P-lock) (90b) locks the locking disc (69). It is not possible to shift the selector lever (80) out of selector lever position "P".
