Air humidity sensor, location/task/design/function - GF83.30-P-2125Q: Notes

WARNING: This page is about a different variant/trim than selected.

MODEL 209.3 /4 up to 28.6.06 except CODE (581) Comfort automatic air conditioning

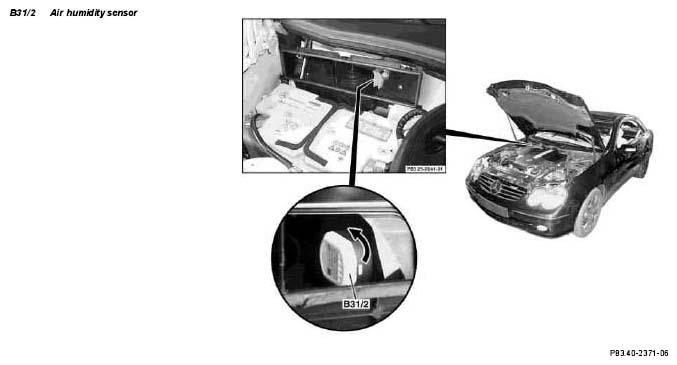

Fig 1: Identifying Air Humidity Sensor Location

Air humidity sensor, position	The air humidity sensor (B31/2) is located in the air flow upstream of the fresh/recirculated air flap at the AC box.
Air humidity sensor, task	The air humidity sensor (B31/2) detects the air humidity.
Air humidity sensor, design	The air humidity sensor (B31/2) basically consists of the following parts: Measuring cell for humidity Electrical connector (3-pin) Electronic printed circuit board with processor Plastic housing, watertight with sensor orifice
Air humidity sensor, function		GF83.30-P-2125-01Q
