Belt pulley, location/task/design/function - GF83.55-P-2103P: Notes

WARNING: This page is about a different variant/trim than selected.

ENGINE 111, 112, 113, 271, 272, 611, 612, 642, 646 in MODEL 203.0 /2 with CODE (580) Air conditioning (or Tempmatic for USA) with CODE (580) Automatic air conditioning with CODE (581) Automatic air conditioning with CODE (581) Comfort automatic air conditioning

ENGINE 111, 112, 271, 272, 611, 612, 646 in MODEL 203.7 with CODE (580) Air conditioning (or Tempmatic for USA) with CODE (580) Automatic air conditioning with CODE (581) Automatic air conditioning with CODE (581) Comfort automatic air conditioning

ENGINE 112.942 /970, 113.942 /965 /981, 612.963, 628.963 in MODEL 163 as of 1.9.01 with CODE (580) Automatic air conditioning

ENGINE 112, 113, 271, 272, 273, 612, 642, 646 in MODEL 209.3

ENGINE 112, 113, 271, 272, 273, 642 in MODEL 209.4

Shown on model 203

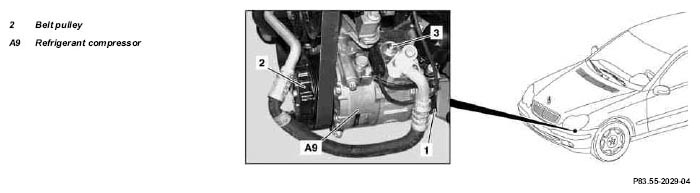

Fig 1: Identifying Belt Pulley And Refrigerant Compressor - Shown On Model 203

Belt pulley, position	The belt pulley (2) is located on the front of the drive shaft on the refrigerant compressor (A9).
Belt pulley, task	The belt pulley (2) drives the refrigerant compressor (A9). In addition the pulley (2) is also used as a torque damper and a torque limiter.
Belt pulley, design		GF83.55-P-2103-03P
Belt pulley, function		GF83.55-P-2103-02P
