Blower motor, location/task/design/function - GF83.10-P-2170Q: Notes
WARNING: This page is about a different variant/trim than selected.
Models 209.3 /4

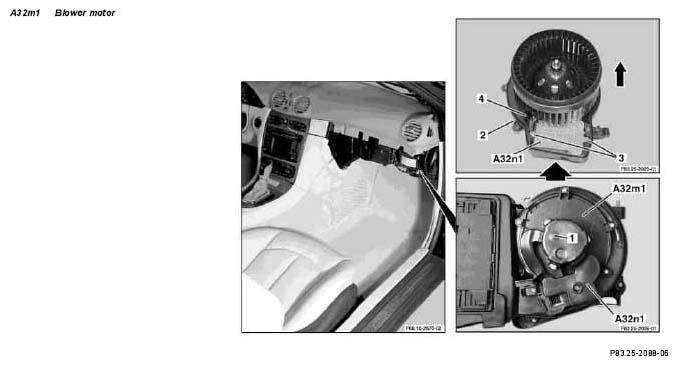

| Blower motor, position | The blower motor (A32m1) is located under the glove compartment in the right of the AC housing. | ||
| Blower motor, task | The blower motor (A32m1) draws fresh air or interior air into the AC housing. In residual engine heat utilization system mode (on vehicles with code (670a) residual engine heat utilization system) the blower motor (A32m1) circulates the air in the interior. |
||
| Blower motor, design | The blower motor (A32m1) consists of a housing, an electric motor and a fan wheel. | ||
| Blower motor, function | GF83.10-P-2170-01Q |
