Condenser location/task/function - GF83.40-P-2152Q
WARNING: This page is about a different variant/trim than selected.
MODEL 209.3 /4
Shown on model 209.3

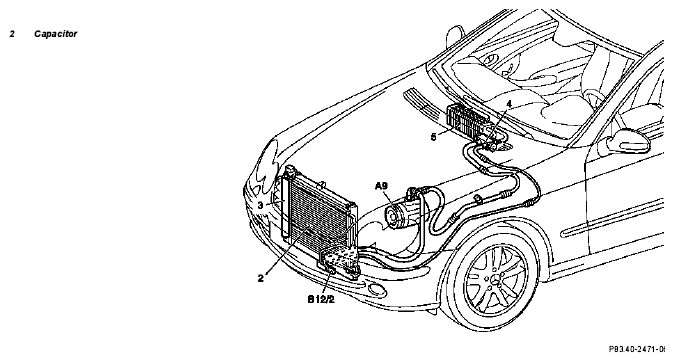

| Condenser, position | The condenser (2) is located behind the radiator grille directly in front of the radiator. | ||
| Condenser task | The condenser (2) ensures that the refrigerant coming from the evaporator changes state from gas to liquid. | ||
| Condenser function | GF83.40-P-2120-01P |
