Evaporator location/task/design/function - GF83.40-P-2121P: Notes
WARNING: This page is about a different variant/trim than selected.
MODEL 203.0 /2 /7 with CODE (580) Air conditioning (or Tempmatic for USA) with CODE (580) Automatic air conditioning with CODE (581) Automatic air conditioning with CODE (581) Comfort automatic air conditioning
MODEL 209.3/ 4

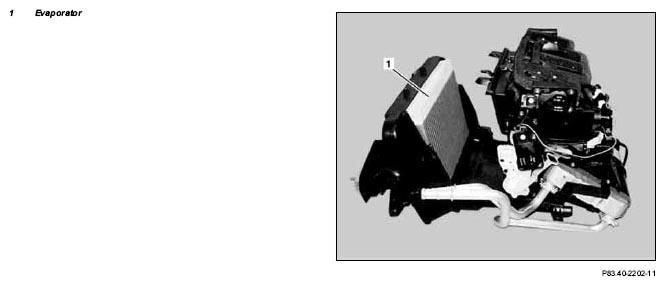

| Evaporator, location | The evaporator (1) is in the air conditioning housing beneath the instrument panel. | ||
| Evaporator, purpose | The evaporator (1) is used to cool and dehumidify the interior air. | ||
| Evaporator, design | The evaporator (1) essentially comprises soldered semicircular disks with corrugated louver fins. | ||
| Evaporator, function | GF83.40-P-2121-01P |
