Fluid reservoir location/task/design/function - GF83.40-P-2122Q: Notes

MODEL 209.3 /4

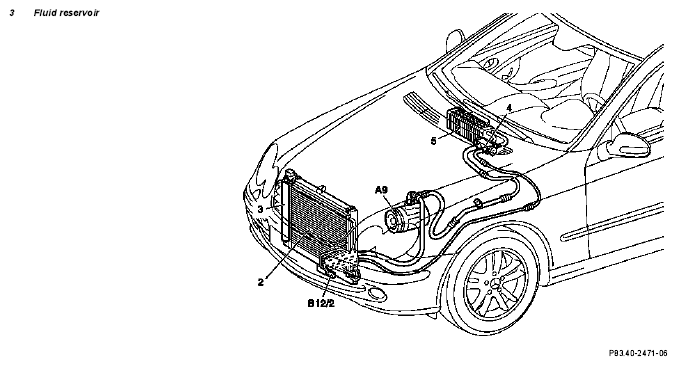

Fig 1: Identifying Fluid Reservoir Location

	Receiver position	The receiver (3) is located on the right-hand side of the condenser in the front of the engine compartment.
	Receiver task	Filtering chemical and mechanical impurities out of the refrigerant Volume reservoir for the refrigerant Draining the refrigerant
	Receiver design	The fluid reservoir (3) consists of a housing, a screw cap and a cartridge. This means that it is possible to replace each of the cartridges located inside the fluid reservoir.
	Fluid reservoir function		GF83.40-P-2122-01P
