Multifunction sensor location/task/function - GF83.10-P-2148Q

WARNING: This page is about a different variant/trim than selected.

MODEL 209.3 /4 with CODE (581b) Convenience automatic air conditioning

Shown on model 209.3

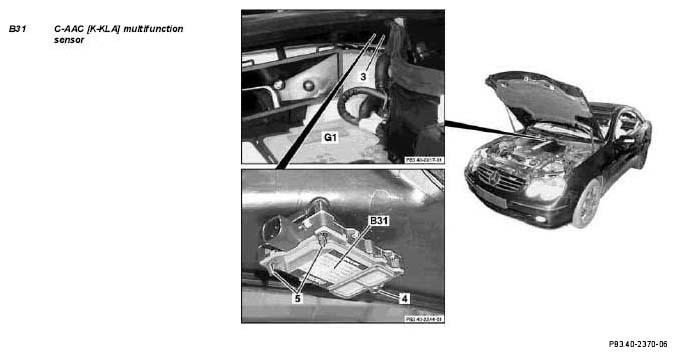

Fig 1: Identifying Multifunction Sensor Location (Shown On Model 209.3)

Multifunction sensor, location	The C-AAC [K-KLA] multifunction sensor (B31) is located in the fresh air inlet on the right rear of the engine compartment.
AAC multifunction sensor, task	The C-AAC [K-KLA] multifunction sensor (B31) is used to record the following values: ambient temperature Humidity pollutant concentrations of outside air
Multifunction sensor, function		GF83.10-P-2135-02P
