Rear blower motor, location/task/design/function - GF83.10-P-2168P: Notes
WARNING: This page is about a different variant/trim than selected.
MODEL 203 as of 1.6.01,
209.3 /4 with CODE (581b) Convenience automatic air conditioning

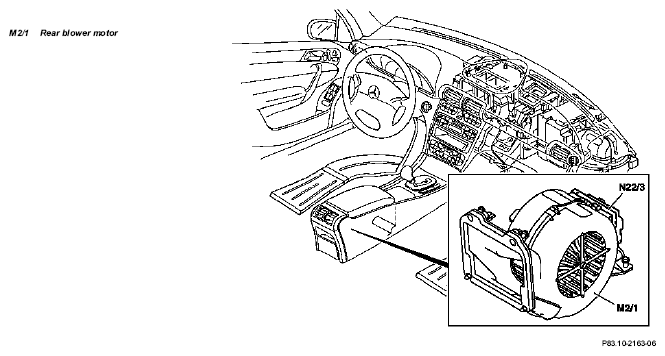

Shown on model 203
| Rear blower motor, location | The rear blower motor (M2/1) is located behind the rear nozzle below the center console. | ||
| Rear blower motor, task | The rear blower motor (M2/1) serves to improve ventilation and cooling in the rear. The air which is drawn into the AC housing by the blower motor is led to the rear blower motor (M2/1) via air ducts. |
||
| Rear blower motor, function | Model 203 | GF83.10-P-2168-01P | |
| Models 209.3/4 | GF83.10-P-2168-01Q |
