Refrigerant compressor, location/task/design/function - GF83.55-P-2100P: Notes

WARNING: This page is about a different variant/trim than selected.

ENGINE 111, 112, 113, 271, 272, 611, 612, 642, 646 in MODEL 203.0 /2 with CODE (580) Air conditioning (or Tempmatic for USA) with CODE (580) Automatic air conditioning with CODE (581) Automatic air conditioning with CODE (581) Comfort automatic air conditioning

ENGINE 111, 112, 271, 272, 611, 612, 646 in MODEL 203.7 with CODE (580) Air conditioning (or Tempmatic for USA) with CODE (580) Automatic air conditioning with CODE (581) Automatic air conditioning with CODE (581) Comfort automatic air conditioning

ENGINE 112.942 /970, 113.942 /965 /981, 612.963, 628.963 in MODEL 163 as of 1.9.01 with CODE (580) Automatic air conditioning

ENGINE 112, 113, 271, 272, 273, 612, 642, 646 in MODEL 209.3

ENGINE 112, 113, 271, 272, 273, 642 in MODEL 209.4

Shown on model 203

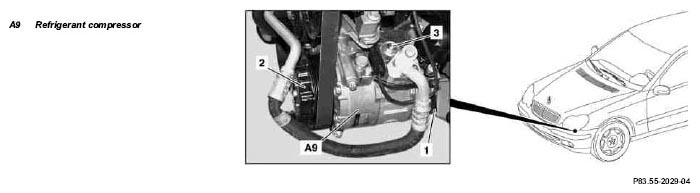

Fig 1: Identifying Refrigerant Compressor - Shown On Model 203

Refrigerant compressor, position	The refrigerant compressor (A9) is flange-mounted to the left front of the engine.
	Model 163	GF83.55-P-2100-01GH
Refrigerant compressor, task	The refrigerant compressor (A9) is responsible for induction and compression of the refrigerant.
Refrigerant compressor, design		GF83.55-P-2100-03P
Refrigerant compressor, function		GF83.55-P-2100-02P
