Refrigerant pressure and temperature sensor location/task/function - GF83.40-P-2171Q: Notes
WARNING: This page is about a different variant/trim than selected.
MODEL 209.3 /4

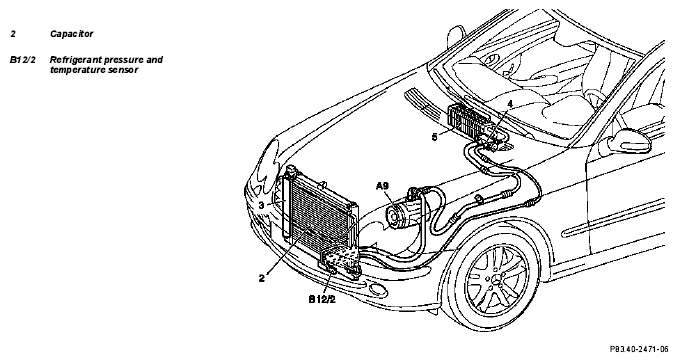

Shown on model 209.3
| Refrigerant pressure and temperature sensor, position | The refrigerant pressure and temperature sensor (B12/2) is located at the bottom of the condenser (2) in the engine compartment. | ||
| Refrigerant pressure and temperature sensor, task | The refrigerant pressure and temperature sensor (B12/2) senses the refrigerant pressure and the temperature of the refrigerant. | ||
| Refrigerant pressure and temperature sensor function | GF83.40-P-2171-01Q |
