Digital Tele Aid Control Module Retrofit (82.95/519A)

Publication date: 2006-11-10
Reference number: 82.95/519A

DIGITAL TELE AID CONTROL MODULE RETROFIT

TECHNICAL SERVICE BULLETIN

Reference Number(s): P-I-82.95/519A, Date of Issue: November 10, 2006

MERCEDES-BENZ:	MODEL 209.365/375/376; MODEL YEAR 2003-2004
GROUP:	82 - Electrical System - Body

Superceded Bulletin(s): P-I-82.95/519

SUBJECT

MODEL 209.365/375/376 with SA CODE (349) (Basic fitting for alarm call system E-Call)

MODEL YEAR 2003-2004

DIGITAL TELE AID CONTROL MODULE RETROFIT

SERVICE INFORMATION

WARNING: Do not disconnect the negative battery cable. Extensive reprogramming requirements are otherwise necessary. Wiring harnesses are therefore electrically active.

Severe vehicle damage, personal injury, or death from electrical shock could result.

Exercise extreme caution while executing these installation instructions. Keep the ignition and radio powered OFF through the final test.

Notes on D2B Optical Fibers

Optical fibers damage easily-handle optical fibers with care to prevent cuts, nicks, abrasions, and crushing.
Optical fiber "ring configurations" must form a closed loop to function (i.e. couple the input of a component with the output of the preceding component).
Identify D2B optical fibers by their orange, semi-rigid insulation.
Electromagnetic interference (EMI) from bundled vehicle electrical harnesses does not affect optical fibers.
The digital Tele Aid control module for vehicles equipped with ECALL2 has a D2B port. Do not connect the D2B port of the digital Tele Aid control module if the existing analog Tele Aid control module has no D2B port. Include the digital Tele Aid control module in the D2B ring configuration only if the existing analog Tele Aid control module has a D2B port.

A. PREPARING FOR THE INSTALLATION

Remove the paneling in the trunk.
- See WIS document AR68.30-P-4600PB, "Remove/install paneling in trunk"

B. RETROFITTING THE DIGITAL TELE AID CONTROL MODULE

Remove the analog Tele Aid control module from the electronics tray behind the rear seat by removing the two M6 screws (Arrows, Fig 1).
Disconnect the cables from the analog Tele Aid control module:
1. GPS antenna connector (A, Fig 1)
2. Power supply connector (B, Fig 1)
Install the digital Tele Aid control module using the previously removed two M6 screws.
Connect the cables to the analog Tele Aid control module:
1. Antenna connector (A, Fig 1)
2. Power supply connector (B, Fig 1)

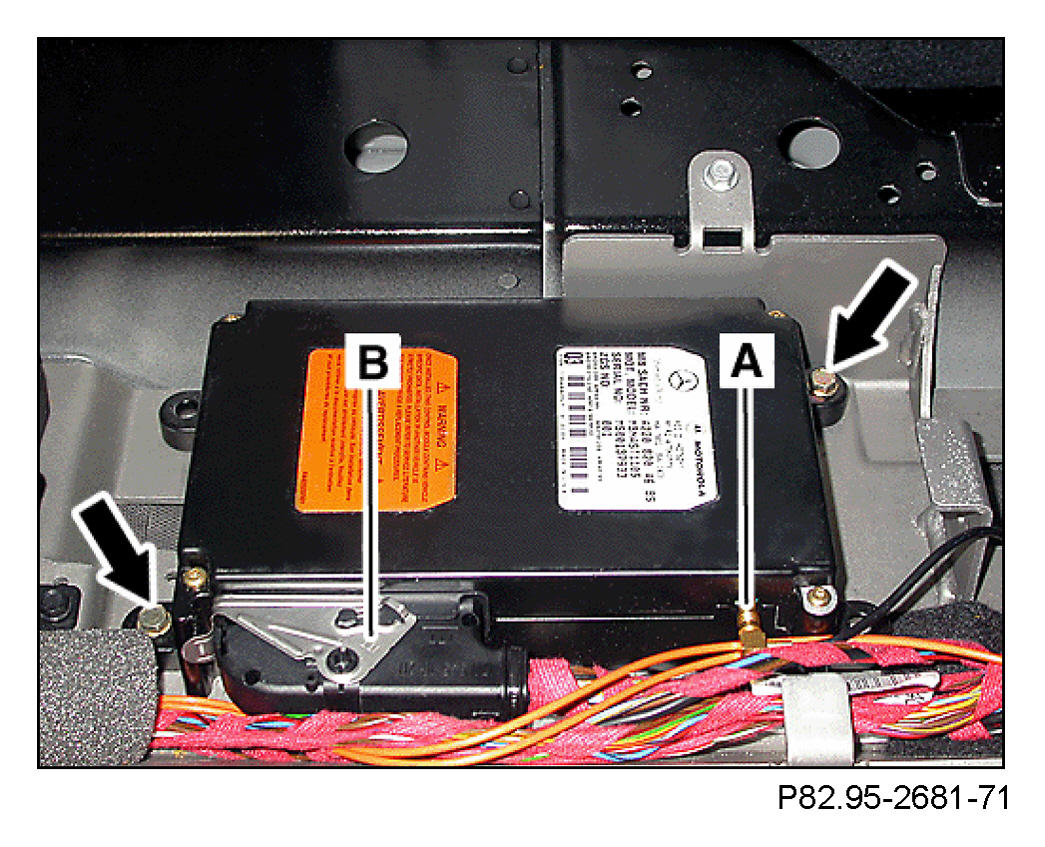

  Fig 1: Tele Aid Control Module Connections

  NOTE: Incorrect installation of connectors can result in damaged, bent pins.
  Damaged, bent pins will result in component malfunction or failure.

  Inspect connectors before and after installation.

C. VERSION CODING

The retrofitted digital Tele Aid control module is not activated. Activate the digital Tele Aid control module by following the Preliminary Draft of "DAS Procedure - Digital Tele Aid Control Module Retrofit" posted on Star TekInfo.
- Also see posted on Star TekInfo, the Preliminary Draft of "MMI Overview - Digital Tele Aid Control Module Retrofit"
  NOTE: Tele Aid version coding the Electronic Ignition System (EIS) control module and SAM control module via Star Diagnosis is necessary.

D. FUNCTION TESTING AND FINAL ASSEMBLY

Reinstall the paneling in the trunk.
- See WIS document AR68.30-P-4600PB, "Remove/install paneling in trunk"

E. PARTS INFORMATION

PARTS INFORMATION

Qty.	Part Name	Part Number/Exchange
1	Control module, digital Tele Aid	BQ 482 0123

NOTE: This installation, and any subsequent related installation and/or workmanship issues, cannot be claimed under warranty.
