Center shifter console, location/task/design/function - GF27.60-P-5100NQL: Notes
TRANSMISSION 722.9 in MODEL 209 with CODE (428) Steering wheel shift buttons
Except code P98 Black Series
With code P98 Black Series

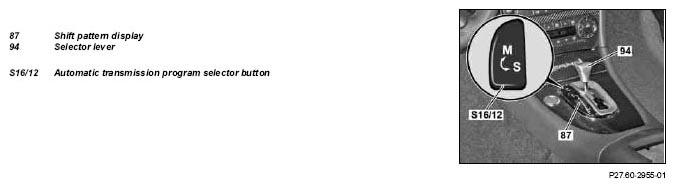

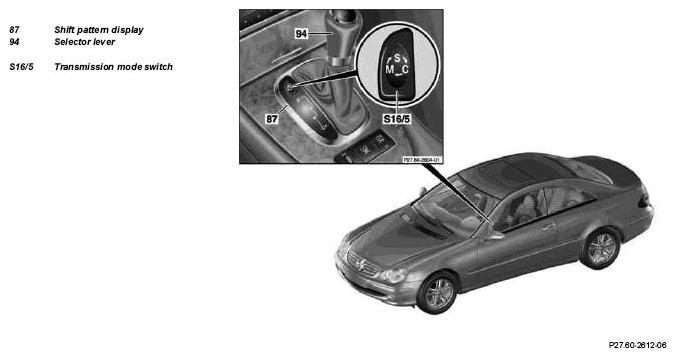

Fig 2: Identifying Automatic Transmission Program Selector Button, Selector Lever And Shift Pattern Display
| Center shifter console, location | The floor shift is located in the center console of the vehicle. | ||
| Center shifter console, task | The center shifter console is the central control for changing the transmission mode, gear range and gear of the transmission. | ||
| Center shifter console, design | GF27.60-P-5100-03NQL | ||
| Center shifter console, function | GF27.60-P-5100-04NQ |
