CDI ignition ON, function - GF07.16-P-2000IC
ENGINE 647.961 in MODEL 211
ENGINE 648.960 in MODEL 220
ENGINE 648.961 in MODEL 211

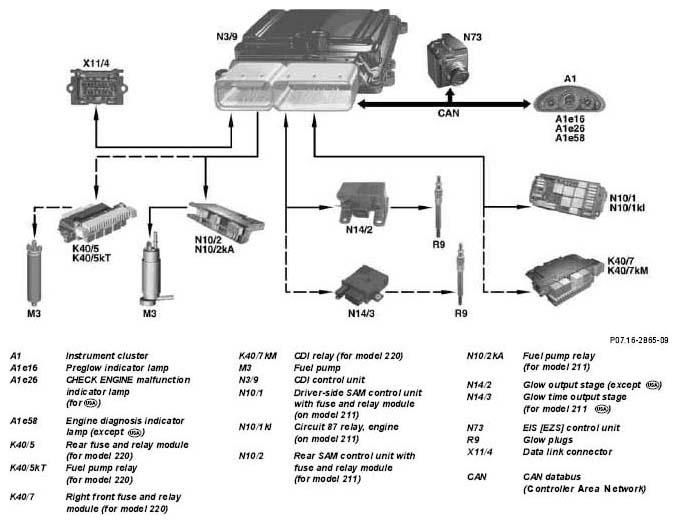

Functions for "ignition ON":
- Engine control is achieved over the circuit 87 relay, engine (for model 211) or over the CDI relay (for model 220) by means of a voltage from "circuit 87"
- For fuel predelivery, the fuel pump is actuated for approx. 30 seconds (only for first "Ignition ON")
- To obtain a lamp check in the preglow indicator lamp and the engine diagnosis indicator lamp (or for model 211
the CHECK ENGINE indicator lamp) are actuated the instrument cluster for about 1 second
- Preglowing through actuation of glow plugs over the glow output stage (or for model 211
- The fault memory can be read out and cleared via the data link connector.
- Corrective programming can be carried out using STAR DIAGNOSIS via the diagnosis data link connector
| CDI fuel supply, function | GF07.16-P-2006IJ | ||
| European On-Board Diagnosis (EOBD), common rail diesel injection - function | On model 211 as of 01.03.2003 except On model 220 as of 01.09.2003 except |
GF07.16-P-3200IC | |
| On-Board Diagnosis (OBD), common rail diesel injection - function | in case of model 211 |
GF07.16-P-3201IC | |
| Instant start function | in case of model 211 |
GF15.20-P-3002IC | |
| CDI preglow function | except |
GF15.20-P-3004IC | |
| CAN data bus function | in case of model 211 | GF54.00-P-0005IC | |
| in case of model 220 | GF54.00-P-0005IJ |
