Pressure regulator valve, location/task/design/function - GF07.05-P-2101IA: Notes
ENGINE 646.951 in MODEL 211
ENGINE 646.961 in MODEL 211
ENGINE 646.962 in MODEL 203
ENGINE 646.963 in MODEL 203
ENGINE 647.961 in MODEL 211
ENGINE 648.960 in MODEL 220
ENGINE 648.961 in MODEL 211

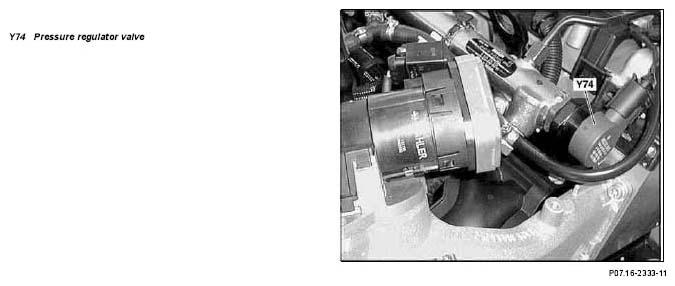

Shown on Engine 646
| Pressure regulator valve, location | The pressure regulator valve is screwed into the rail at the rear end. | ||
| Pressure regulator valve, task | Together with the quantity control valve, to ensure proper adjustment and stabilization of the rail pressure. | ||
| Pressure regulator valve, design | GF07.05-P-2101-03IB | ||
| Pressure regulator valve function | GF07.05-P-2101-02IA |
