Fuel pressure sensor - location/task/design/function - GF47.20-P-4007HA
ENGINE 113.991 in MODEL 215, 220
ENGINE 113.992 in MODEL 230 up to Model Year 2008
ENGINE 113.993 in MODEL 463 up to 31.5.12
ENGINE 113.995 in MODEL 230 up to Model Year 2008

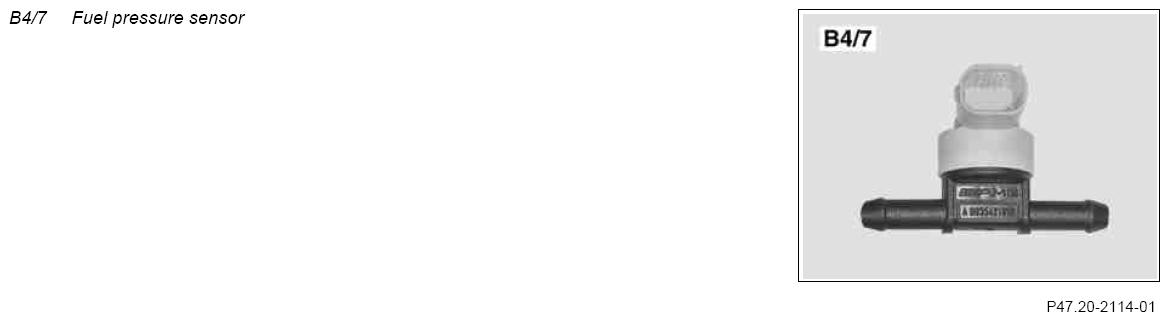

| Fuel pressure sensor - position | Model 215, 220 | GF47.20-P-4007-01M | |
| Model 230 | GF47.20-P-4007-01HA | ||
| Model 463 | GF47.20-P-4007-01GA | ||
| Fuel pressure sensor - task | The fuel pressure sensor detects the fuel system pressure. | ||
| Fuel pressure sensor - design | The fuel pressure sensor consists of a plastic housing in which a moveable diaphragm is located which acts on an electrical ohmmeter. | ||
| Fuel pressure sensor - function | The fuel pressure sensor detects the fuel system pressure and supplies a matching voltage signal to the fuel pump control unit (N118). |
