Floor shift, location/task/design/function - GF27.60-P-5100GI

TRANSMISSION 722.6 in MODEL 163 with touch shift

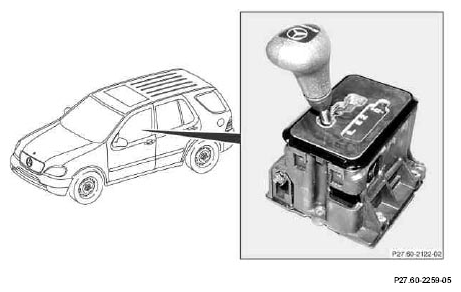

Fig 1: Identifying Floor Shift - With Touch Shift
G04606474
  Floor shift, location The floor shift is located in the center console of the vehicle.
  Floor shift, task The floor shift is the central control for the driver to influence the shift program of the automatic transmission.
  Floor shift, design   GF27.60-P-5100-03GI
  Floor shift, function   GF27.60-P-5100-04GI
