Shift pattern display, function - GF27.19-P-5129-03RMZ
Transmission 722.6 in model 209.376 as of 01.6.03, 209.476, 211.076 as of 01.09.03, 211.276, 219.376, 230.474 as of 01.09.03, 230.479
Transmission 722.6 in models 209, 211, 230 with code (428) steering wheel shift buttons
Shows model 230.474
The position indicator in the instrument cluster (A1) is actuated by the ETC [EGS] control unit (N15/3) via the Controller Area Network bus class C (engine compartment) (CAN-C).
The program indicator in the instrument cluster (A1) is actuated by the electronic selector lever module control unit (N15/5) likewise via CAN-C.

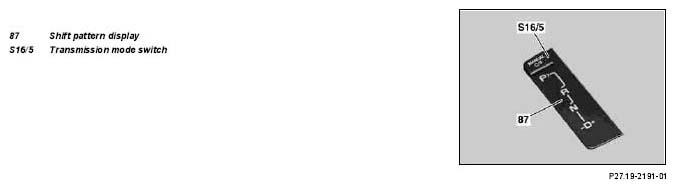

The selector scheme symbols (87) are illuminated when the driving lamps are switched on.
Program selection "C/S"
The program selection performed at the transmission mode switch (S16/5) remains stored after a driving time of approx.
1 minute and is then displayed once the engine is started again. The driving time of approx. 1 minute is necessary because of the system.
Program selection "M"
The program selection "M" (Manual program) performed at the transmission mode switch (S16/5) does not remain stored. The sport program "S" is displayed once the engine is started.
