Starter lock-out contact, location/task/design/function - GF27.19-P-5106G: Notes

TRANSMISSION 722.6

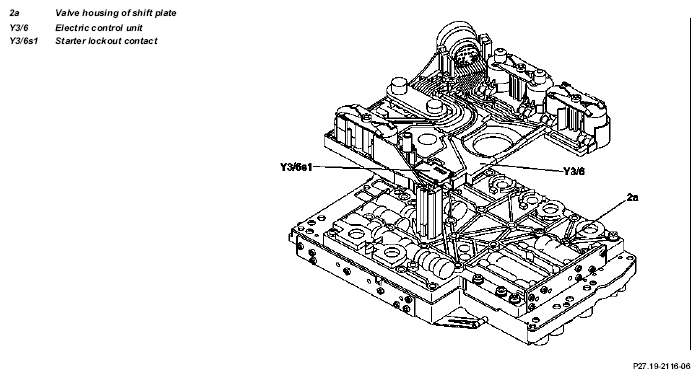

Fig 1: Identifying Starter Lock-Out Contact Location

Courtesy of MERCEDES-BENZ USA

	Starter lockout contact, location	The starter lockout contact (Y3/6s1) is located in the electrical control unit (Y3/6) and is permanently connected to the conductor tracks.
	Starter lockout contact, task	To recognize selector valve and selector lever position "P" and "N".
	Starter lockout contact, design	The starter lockout contact (Y3/6s1) consists of: a plunger a permanent magnet a reed contact
	Starter lockout contact, function		GF27.19-P-5106-01G
