Switching on heated seats, function - GF91.30-P-2000A

MODEL 168, 170, 210 up to 30.6.99 with CODE (873) Electrically heated left and right front seats

MODEL 202 as of 1.9.95 with CODE (873) Electrically heated left and right front seats

MODEL 210 with CODE (872) Electrically heated left and right rear seats

MODEL 210 as of 1.7.99 with CODE (873) Electrically heated left and right front seats except CODE (401a) Front seat ventilation

Models 170, 202, 210, 168

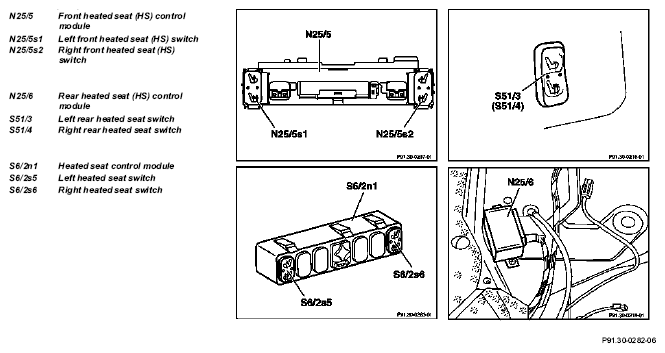

Fig 1: Switching On Heated Seats Function

Function sequence

1. Function prerequisites:
   • Ignition on, ignition/starter or glow/starter switch in position "1" (C. 15R) or "2" (C. 15).
2. Heated seat switch pressed once to heating stage "1" or "2". Heating stage "1" is indicated by one of the LED's in the switch coming on. In heating stage "2" both LED's come on.
3. The heated seat control module controls the power to the heating element in the seat depending on the heating stage set.
4. The heater wire in the heating elements is heated up by the current flowing through.
