Fuel pump, location/task/design/function - GF47.20-P-4003KE
ENGINE 271.942

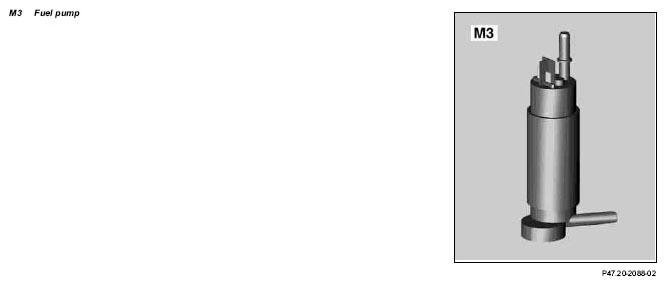

| Fuel pump position | GF47.20-P-4003-01PE | ||
| Fuel pump task | The fuel pump provides a sufficient quantity of fuel to the high-pressure pump and at the required pressure. | ||
| Fuel pump design | The fuel pump is a two-stage flow pump. A fuel strainer is installed at the bottom at the feed to the fuel pump as a coarse filter. | ||
| Fuel pump function | GF47.20-P-4003-02D |
