CDI external quantity control, function - GF07.16-P-3011IC
ENGINE 647.961 in MODEL 211
ENGINE 648.960 in MODEL 220
ENGINE 648.961 in MODEL 211

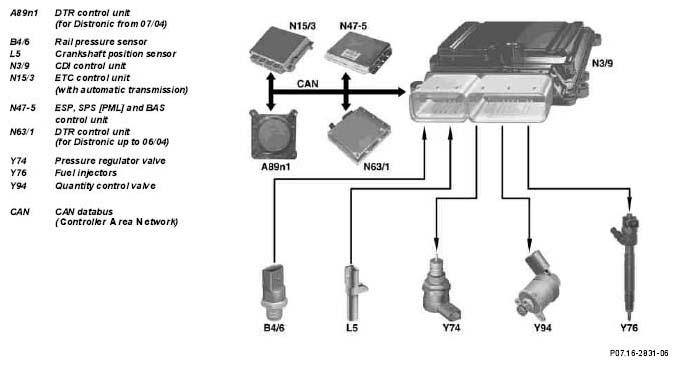

With external quantity control, the engine torque is reduced by the CDI control unit.
The engine torque is reduced by reduction of the injection quantity, lowering of the rail pressure and a shortening of injection timing.
For this purpose the ME control unit received matching signals via the CAN databus from the.
- ESP control unit
- ETC control unit (with automatic transmission)
- DTR control unit (with Distronic)
| Component description for the fuel injectors | Y76 | GF07.03-P-6120IC | |
| Component description for the crankshaft position sensor | L5 | GF07.04-P-6010IC | |
| Component description for the rail pressure sensor | B4/6 | GF07.04-P-6210IC | |
| Component description for the quantity control valve | Y94 | GF07.05-P-6010IC | |
| Component description for the pressure regulator valve | Y74 | GF07.05-P-6020IC | |
| Component description for the CDI control unit | N3/9 | GF07.16-P-6000IC |
