CDI starting, function - GF07.16-P-2001IC

ENGINE 647.961 in MODEL 211

ENGINE 648.960 in MODEL 220

ENGINE 648.961 in MODEL 211

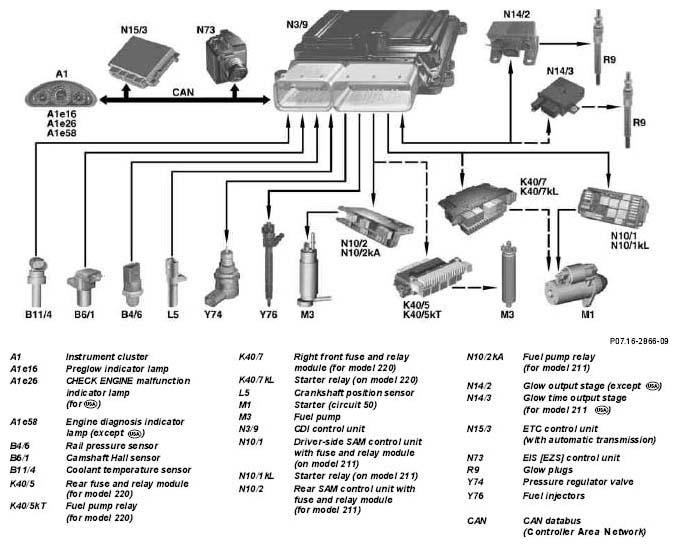

Fig 1: CDI Starting Function Chart

The following sub-functions are active when starting:

	CDI fuel supply, function		GF07.16-P-2006IJ
	CDI start quantity control, function		GF07.16-P-3000IC
	CDI high pressure circuit, function		GF07.16-P-3012IC
	CDI engine speed signal, function		GF07.16-P-3017IB
	European On-Board Diagnosis (EOBD), common rail diesel injection - function	On model 211 as of 01.03.2003 except On model 220 as of 01.09.2003 except	GF07.16-P-3200IC
	On-Board Diagnosis (OBD), common rail diesel injection - function	in case of model 211	GF07.16-P-3201IC
	Instant start function	in case of model 211	GF15.20-P-3002IC
	CDI preglow function	except	GF15.20-P-3004IC
	Starter control, function		GF15.30-P-3000IK
	CAN data bus, function	in case of model 211	GF54.00-P-0005IC
		in case of model 220	GF54.00-P-0005IJ
