Seat ventilation blower regulator, location/task/design/function - GF91.30-P-3102T
MODELS 211.0 /2 /6 with CODE (401a) Front luxury seat, incl. heated seat and seat ventilation

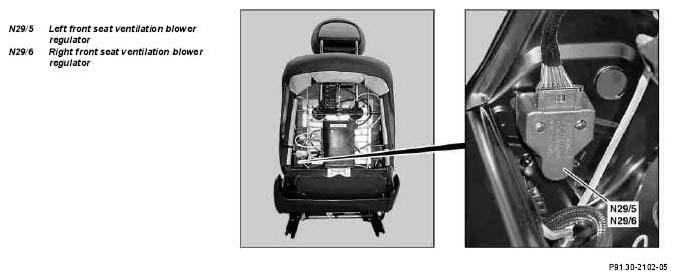

Illustrated on the right front seat
| Seat ventilation blower regulator, location | The left front seat ventilation blower regulator (N29/5) and right front seat ventilation blower regulator (N29/6) are mounted into the backrest of the driver and front passenger seat. | ||
| Seat ventilation blower regulator, purpose | The left front seat ventilation blower regulator (N29/5) and right front seat ventilation blower regulator (N29/6) control the speed of the ventilation motors depending on the control voltage of the HS [SIH] and seat ventilation control unit (N25/7). | ||
| Seat ventilation blower regulator, design | The left front seat ventilation blower regulator (N29/5) and right front seat ventilation blower regulator (N29/6) consist of an electronic circuit in a plastic housing with eight terminals. | ||
| Seat ventilation blower regulator, function | The integrated electronic circuit in the left front seat ventilation blower regulator (N29/5) and right seat ventilation blower regulator (N29/6) can be used to regulate the voltage supply of the seat ventilation motors, in accordance with the actuation voltage of the HS [SIH] and seat ventilation control unit (N25/7). |
