Telecommunications control unit, location/task/design/function - GF82.70-P-3114T: Notes

MODEL 211.0 /2

Shown on model 211.0

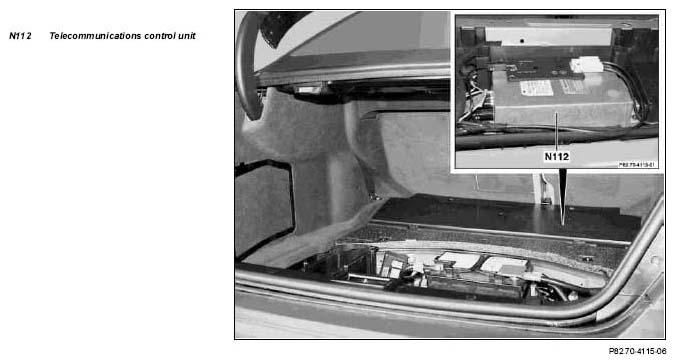

Fig 1: Identifying Telecommunications Control Unit Location - Shown On Model 211.0
G04987478
  Telecommunications control unit location The telecommunications control unit (N112) is located on the luggage compartment floor behind the rear bench seat.
    Model 211.2 up to 31.5.06 GF82.70-P-3114-01T
  Telecommunications control unit, task The telecommunications control unit is the communications platform for:
  • Telephone/ SMS
  • Emergency call
  • Service and breakdown assistance
  • Traffic services
  • Internet

  Telecommunication control unit design up to 31.5.06 GF82.70-P-3114-03T
  Telecommunications control unit function up to 31.5.06 GF82.70-P-3114-04T
