Fuel gage sensor, location/task/design/function - GF47.10-P-3001KE: Notes
MODEL 211 with ENGINE 112.913 /917 /949 /954, 113.967 /969

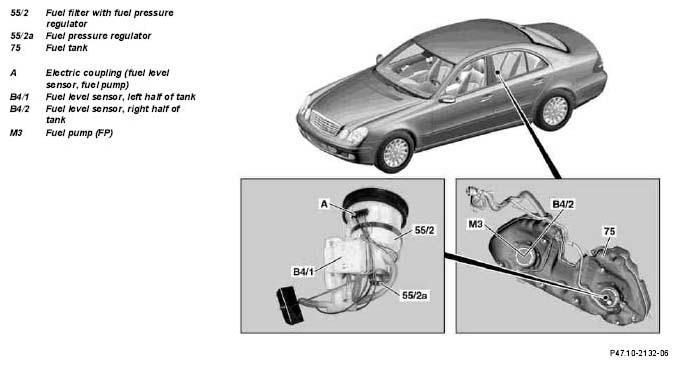

| Fuel gage sensor, location | One fuel level sensor is mounted in each fuel tank chamber. | ||
| Fuel gage sensor task | The fuel level sensors determine the level of fuel in the both fuel tank chambers | ||
| Fuel gage sensor design | The fuel level sensors are float-and-lever sensors with each two wiper contacts (potentiometer). | ||
| Fuel gage sensor function | GF47.10-P-3001-03KE |
