Fuel level sensor, location/task/design/function - GF47.10-P-3001AM: Notes
MODELS 211, 219 with ENGINE 113.990
MODEL 215, 220 with ENGINE 113.991
MODEL 230 with ENGINES 113.992 /995
MODEL 463 with ENGINE 113.993

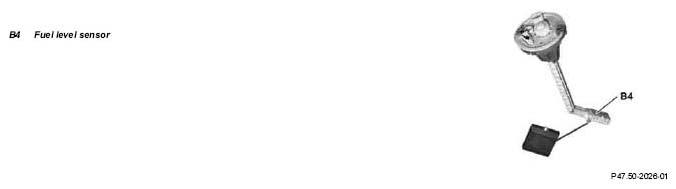

Illustration of fuel level sensor on models 220, 215
| Fuel gage sensor, location | Models 211, 219 | GF47.10-P-3001-01TA | |
| Models 215, 220, 230, 463 | GF47.10-P-3001-01AM | ||
| Fuel gage sensor task | The fuel level sensor determines the fuel level in the fuel tank chamber(s). | ||
| Fuel gage sensor design | The fuel level sensor is a float-and-lever sensor with two wiper contacts (potentiometers). | ||
| Fuel gage sensor function | GF47.10-P-3001-03AM |
