Fuel pump - location/task/design/function - GF47.20-P-4003AM: Notes
ENGINE 113.990 in MODEL 211, 219
ENGINE 113.991 in MODEL 215, 220
ENGINE 113.992 in MODEL 230
ENGINE 113.993 in MODEL 463
ENGINE 113.995 in MODEL 230

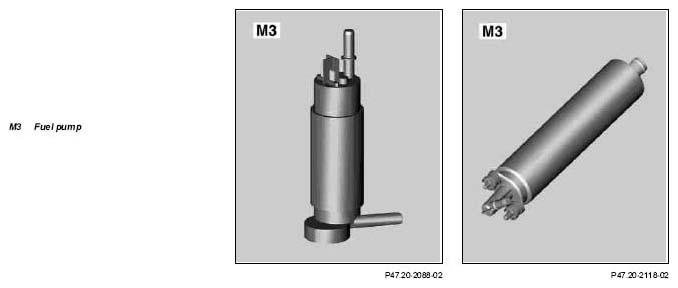

Picture on the left: two-stage flow pump in models 211, 219
Picture on the right: helical spindle pump in models 215, 220, 230, 463
| Fuel pump position | Models 211, 219 | GF47.20-P-4003-01TA | |
| Models 215, 220 | GF47.20-P-4003-01AM | ||
| Model 230 | GF47.20-P-4003-01RA | ||
| Model 463 | GF47.20-P-4003-01GA | ||
| Fuel pump task | The fuel pump supplies an adequate quantity of fuel at the required pressure to the fuel injection system. | ||
| Fuel pump design | GF47.20-P-4002-01KE | ||
| Fuel pump function | GF47.20-P-4003-02KE |
