End disk modified - BT27.50-P-0015-01W
TRANSMISSION 722.6
TRANSMISSION 722.9

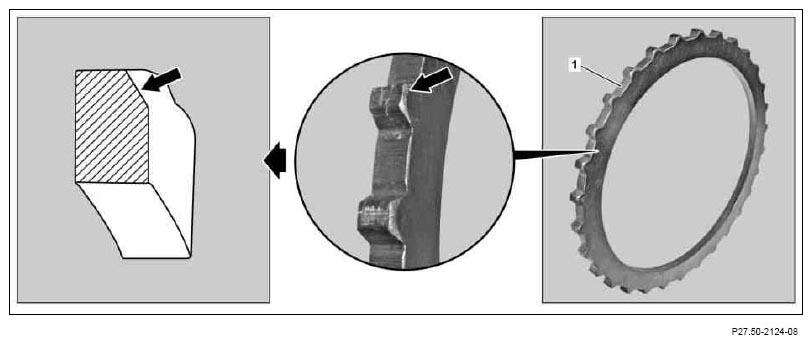

As of 05/07, the end disk (1) in the multidisk brakes BR, B2 is to be modified. The new end disk (1) can be identified by the punched indent on one side (rounded edge on one side of the outer edge of the end disk (1)) (arrow). As a result, grinding is no longer required at this end disk (1).
When assembled, the punched indent must not face the circlip.
In the case of repairs, the parts service now only provides the end disk (1) in the new version.
