Digital Tele Aid Control Module (82.95/509)

DIGITAL TELE AID CONTROL MODULE

TECHNICAL SERVICE BULLETIN

SUBJECT

MODEL 220.170/174/175/176/183/184 with SA CODE (384)

MODEL YEAR 2004

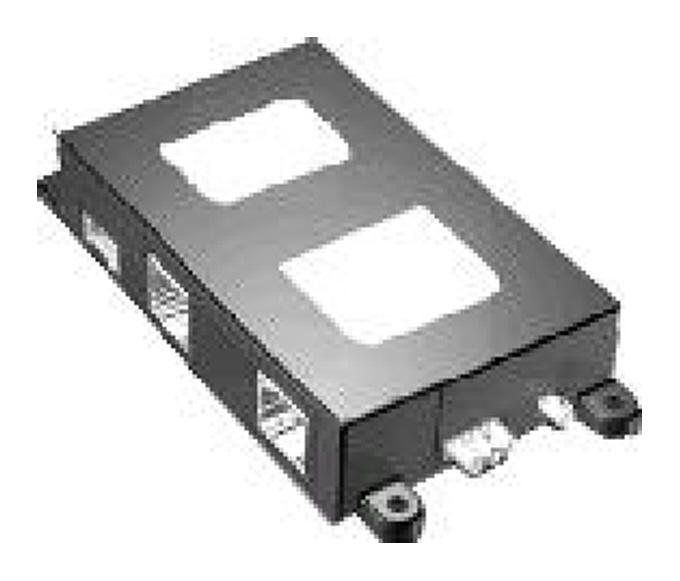

DIGITAL TELE AID CONTROL MODULE

SERVICE INFORMATION

Notes on MOST optical fibers

• Optical fibers damage easily-handle optical fibers with care to prevent cuts, nicks, abrasions, and crushing.
• Optical fiber "ring configurations" must form a closed loop to function (i.e. couple the input of a component with the output of the preceding component).
• Identify MOST optical fibers by their orange, semi-rigid insulation.
• Electromagnetic interference (EMI) from bundled vehicle electrical harnesses does not affect optical fibers.

Model Series	Tele Aid	MY 01	MY 02	MY 03	MY 04	MY 05	MY 06
	CPD				X

• Tele Aid Location:  Interior Under Right rear seat
• Estimated Physical Installation Time:  0.7 h
• Opcode:  82-9621

A. PREPARING FOR THE INSTALLATION

1. Read these installation instructions in their entirety before proceeding.
2. Remove the rear seat cushion.
   • With CODE (223b) - Electronically adjustable rear bench seat
     • See WIS document AR91.12-P-1020M, "Remove/install rear seat cushion"
   • With CODE (224c) - Electronically adjustable rear single seats, with seat ventilation, seat heater and memory package
     • See WIS document AR91.12-P-1020MB, "Remove/install rear seat cushion"
   • Except CODE (223b) and CODE (224c)
     • See WIS document AR91.12-P-1020MA, "Remove/install rear seat cushion"
3. Lift up the insulation (Fig 2) on the right side exposed by the removed rear seat cushion or rear bench seat.

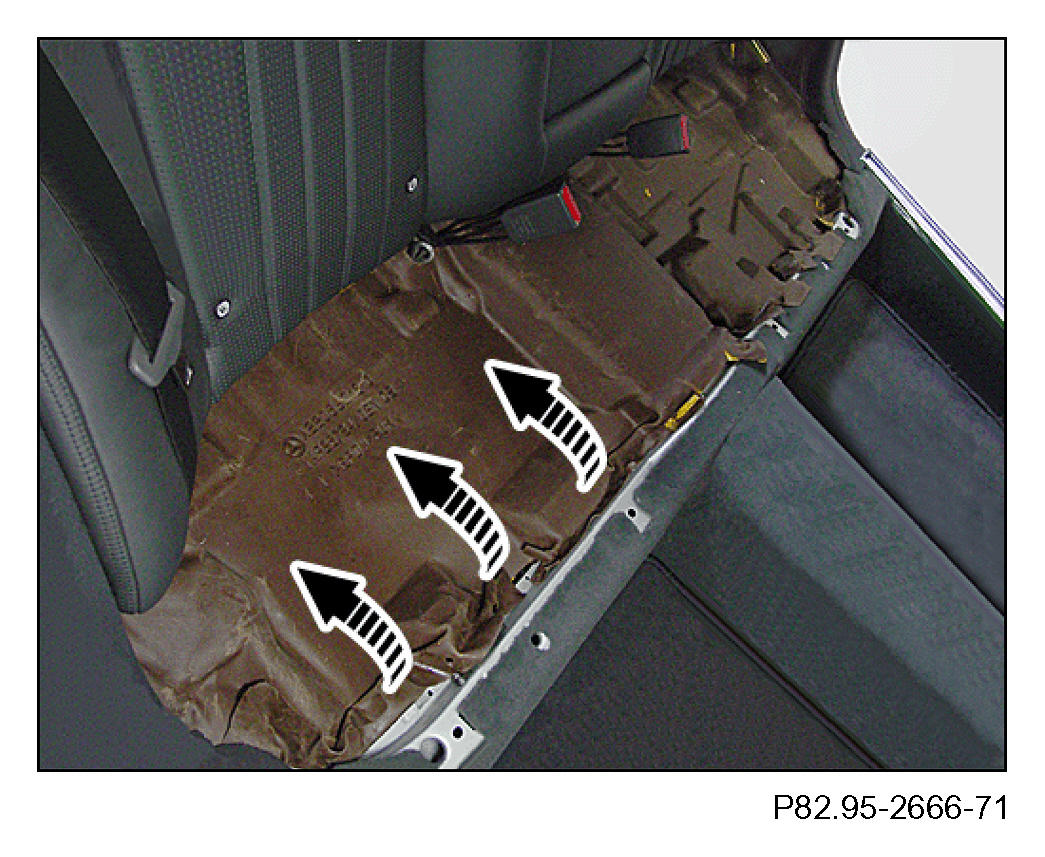

   Fig 2: Lifting Insulation Rear Seat Cushion

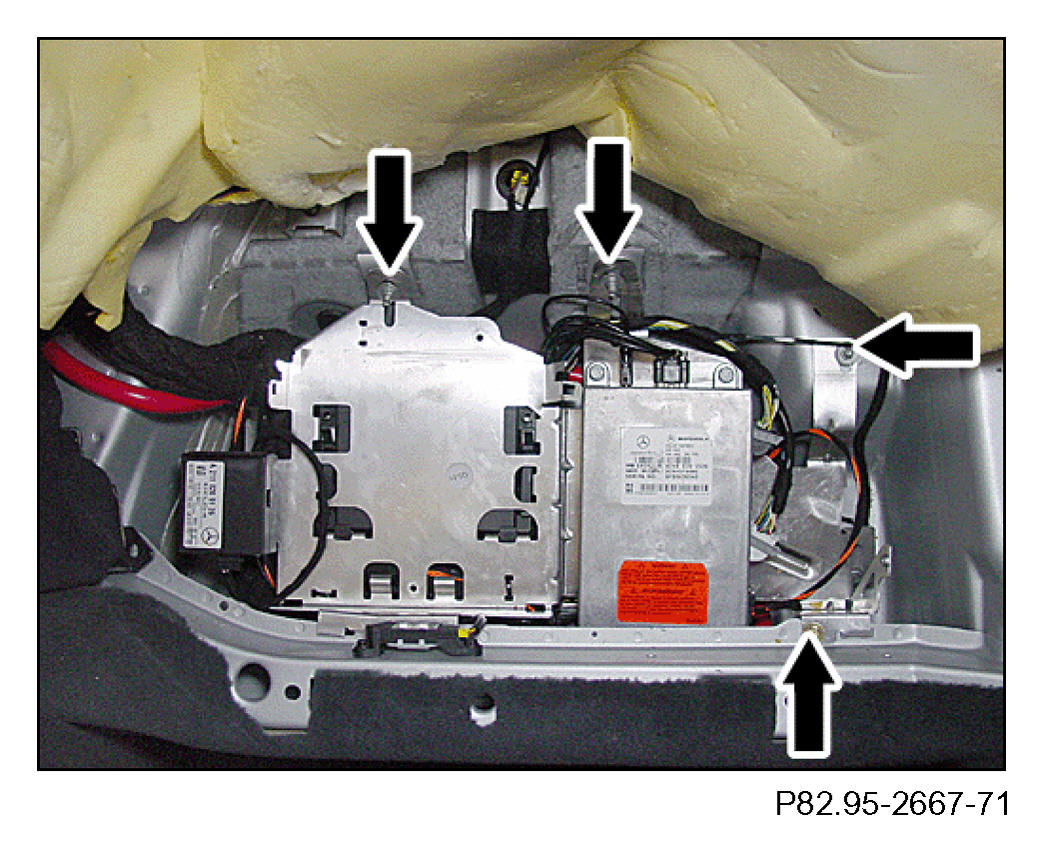

4. Unfasten the bracket for the Tele Aid control module by removing the M4 flange nuts (Fig 3).
5. Slide the bracket assembly to the rear enough to expose the front fastening point of the Tele Aid control module.
   Fig 3: Tele Aid Control Module



B. RETROFITTING THE DIGITAL TELE AID CONTROL MODULE

1. Leave the analog Tele Aid control module installed to perform this step. Exchange the analog Tele Aid control module with the digital Tele Aid control module only when prompted by Star Diagnosis.

   For automatically version coding the Tele Aid control module, select in Star Diagnosis:

   Control units > Information and communication > Audio, video, navigation and telematics > Tele Aid > Initial Startup > Initial Startup with automatic takeover of settings of previous control unit  or, for manually version coding the Tele Aid control module, select in Star Diagnosis:

   Control units > Information and communication > Audio, video, navigation and telematics > Tele Aid > Initial Startup > Initial Startup with manual settings input for new control unit

   See Section C, to better understand how the manual and/or automatic replacements have to be completed in Star Diagnosis.

2. Disconnect the cables from the analog Tele Aid control module:
   1. GPS Antenna connector (A, Fig 4)
   2. Antenna connector (B, Fig 4)
   3. Power supply connector (C, Fig 4)
   4. Power supply connector (D, Fig 4)
   5. MOST connector (E, Fig 4)

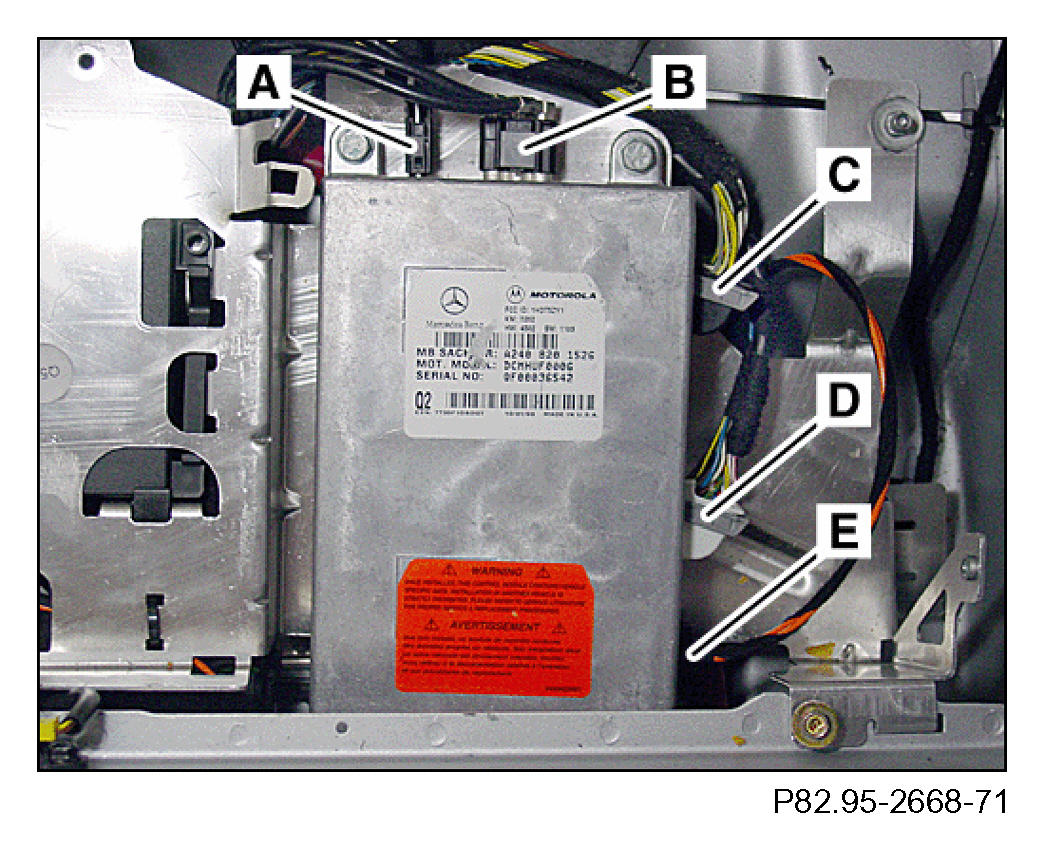

      Fig 4: Analog Tele Aid Control Module Connections


3. Remove the analog Tele Aid control module from the bracket by removing the three M5 nuts (Fig 5).

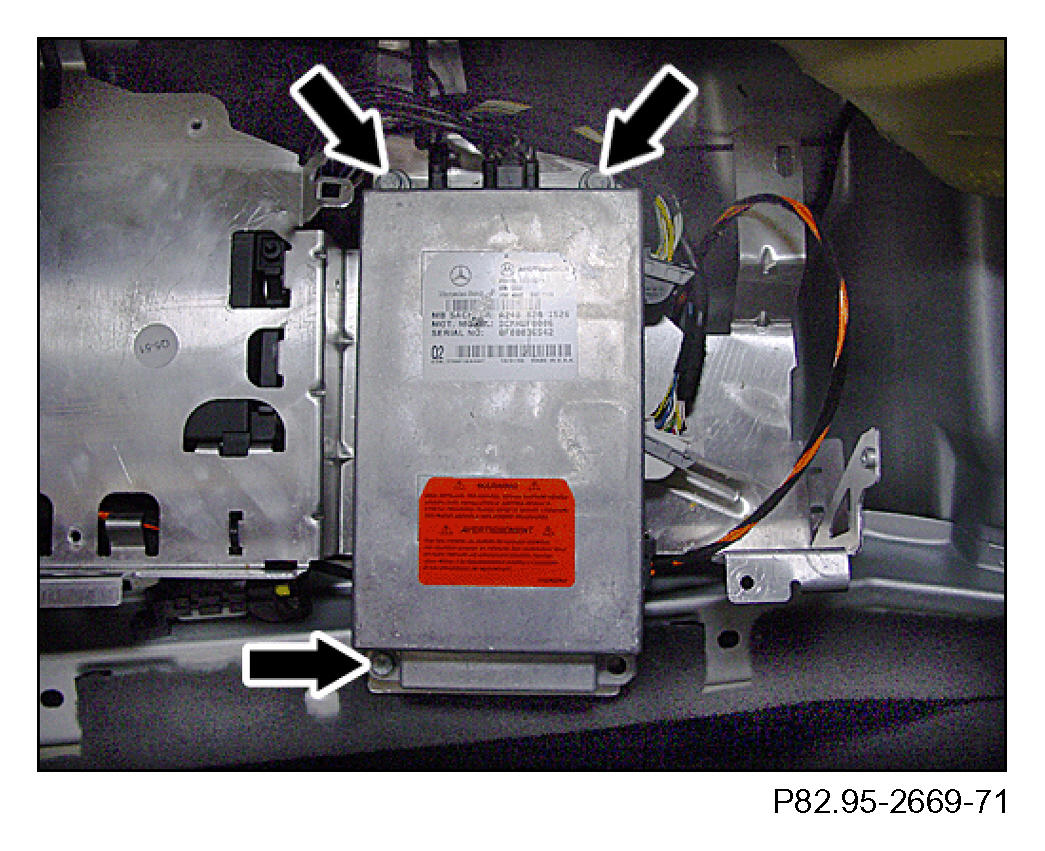

   Fig 5: Tele Aid Control Module Fasteners


4. Install the digital Tele Aid control module using the previously removed three M5 nuts.
5. Reinstall the bracket for the Tele Aid control module using the previously removed M5 flange nuts (Fig 3).
6. Connect the cables to the analog Tele Aid control module:
   1. GPS Antenna connector (A, Fig 6)
   2. Antenna connector (B, Fig 6)
   3. Power supply connector (C, Fig 6)
   4. Power supply connector (D, Fig 6)
   5. MOST connector (E, Fig 6)

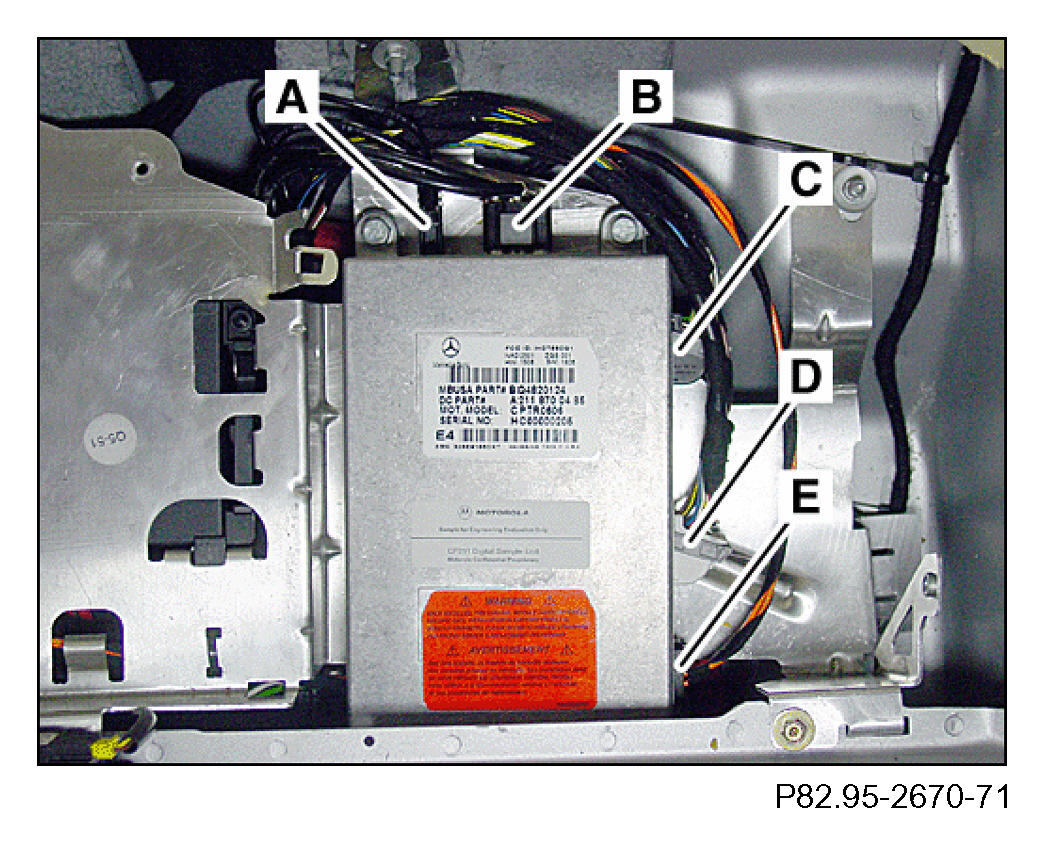

      Fig 6: Digital Tele Aid Control Module Connections


      NOTE: Incorrect installation of connectors can result in bent pins.

      Bent pins will result in component malfunction or failure.

      Inspect connectors before and after installation.

C. VERSION CODING

1. The retrofitted digital Tele Aid control module is not activated. Activate the digital Tele Aid control module by following the Preliminary Draft of "DAS Procedure - Digital Tele Aid Control Module Retrofit" posted on Star TekInfo.

   Also see posted on Star TekInfo  , the Preliminary Draft of "MMI Overview - Digital Tele Aid Control Module Retrofit"

   NOTE:

   • Tele Aid version coding the Instrument Cluster and Central Gateway (ZGW) via Star Diagnosis is necessary.
   • Version Coding the head unit is necessary and has to be correctly set via Star Diagnosis: Tele Aid "Not Fitted" for CP TeleAid MY04, and "Fitted" for LCT TeleAid MY05/06
   • The engine must be running for the "Tele Aid defective" warning to display in the Instrument Cluster.
   • If during Service Call the operator reports he can not hear anything in the vehicle, the Voice Recognition control module (SBS) should be replaced, even if no error DTCs are detected in the SBS. The discrete micro bypass function to the TeleAid of this control module sometimes fails. The normal hands free telephone works fine though. Also the discrete micro array should be checked.

D. PARTS INFORMATION

Qty.	Part Name	Part Number/Exchange
1	Control module, digital Tele Aid	BQ 482 0124
