OEM Connector End Views -- 230 Chassis
>>
Connector End Views
>>
Control Module Box/Engine Separation Point Connector End View (X35/63)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Control Module Box/Engine Separation Point Connector End View (X35/63)

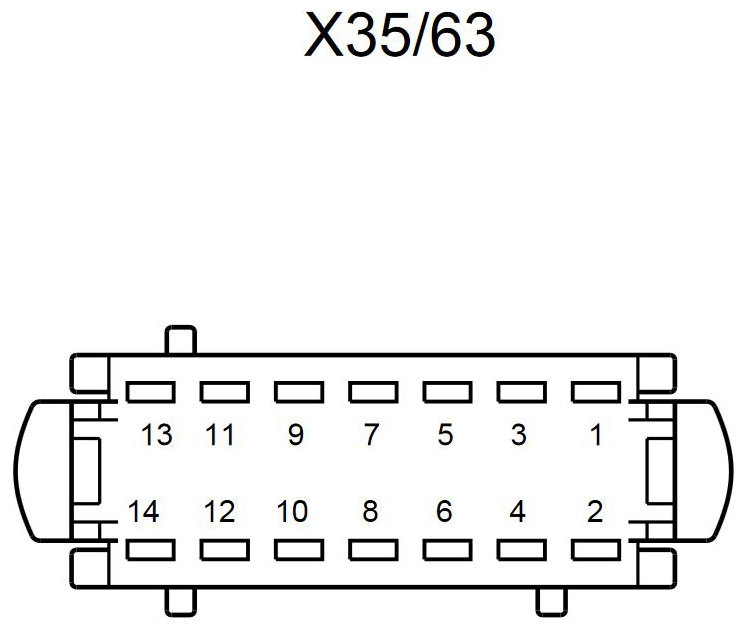

Fig 1: Control Module Box/Engine Separation Point Connector End View (X35/63)
Courtesy of MERCEDES-BENZ USA
