Service Campaign 2007030001 - Check Engine Control Module Software And Update As Required (2007030001)

Publication date: 2007-03-07
Reference number: 2007030001

SERVICE CAMPAIGN 2007030001 - CHECK ENGINE CONTROL MODULE SOFTWARE AND UPDATE AS REQUIRED

SERVICE CAMPAIGN BULLETIN

Reference Number(s): 2007030001, Date of Issue: March 7, 2007

MERCEDES-BENZ:	Model 203.052, Model Year 2007
GROUP:	00 OF SERVICE INFORMATION BINDER
GROUP:	I OF INFORMATION - PARTS & ACCESSORIES BINDER

SUBJECT

MODEL 203.052

MODEL YEAR 2007

CHECK ENGINE CONTROL MODULE SOFTWARE AND UPDATE AS REQUIRED

THIS SERVICE CAMPAIGN AFFECTS DEALER INVENTORY ONLY .

AFFECTED VEHICLES MUST BE REPAIRED PRIOR TO RETAIL SALE .

This Service Campaign has been initiated because DCAG has determined that on affected vehicles the software for the engine control module may need to be updated regarding fuel type for Flex Fuel Vehicles. Vehicles without the engine control module software update that are filled only with E85 fuel may experience starting problems, rough vehicle operation and MIL illumination. Dealers will update the engine control module software as required.

Prior to performing this Service Campaign:

Please check VMI to determine if the vehicle is involved in the Campaign and if it has been previously repaired.
Please review the entire Service Campaign bulletin and follow the procedure steps exactly as described.

Please note that Recall and Service Campaigns do not expire and may also be performed on a vehicle with a vehicle status indicator.

Approximately 6,428 vehicles are affected.

PROCEDURE

Note - Prior to starting the procedure ensure to:

Use DAS version 01/2007 with AddOn 0673 or higher with all associated patches
Follow the steps exactly as described in DAS
Connect battery charger

Connect Star Diagnosis.
Check engine control module software.
- Follow the DAS path "Control unit adaptations/ Control unit programming" and on-screen instructions.

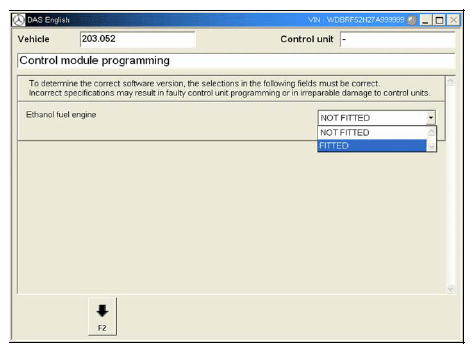

NOTE: In rare cases DAS may not recognize the engine control module software. If the window shown in Fig 1 opens, choose "Ethanol fuel engine: FITTED" and select 'F2'.

Fig 1: DAS Display - Control Module Programming
Perform one of the following:
- If newer software is available: Install software, then proceed to step 4.
- If newer software is not available: Disconnect Star Diagnosis; this campaign has been completed.
Perform SCN/CVN coding of control module.
- Follow the DAS path "Control unit adaptations/Variant coding/SCN coding" and on-screen instructions.
Read out and erase fault memory.
Disconnect Star Diagnosis.

NOTE:

Please note that the information in the most current version of StarTime supersedes the warranty information in the Campaign Bulletin.
The following allowable labor operation should be used when submitting a warranty claim for this repair:

WARRANTY INFORMATION

REPAIR 1 (CHECK ENGINE CONTROL MODULE SOFTWARE)

Operation:

Star Diagnosis System (SDS), Connect & Disconnect (02-4762)
Battery Charger, Connect (with SDS connected) (02-5058)
Engine Control Unit Software, Check (with SDS connected) (02-5638)

WARRANTY INFORMATION - REPAIR 1

Damage Code	Operation Number	Labor Time (hrs.)	Model Indicator(s)
54 951 06 8	02-4762	0.2	Q6
	02-5058	0.1	Q6
	02-5638	0.1	Q6

REPAIR 2 (CHECK AND INSTALL ENGINE CONTROL MODULE SOFTWARE)

Operation:

Star Diagnosis System (SDS), Connect & Disconnect (02-4762)
Battery Charger, Connect (with SDS connected) (02-5058)
Engine Control Unit Software, Check (with SDS connected) (02-5638)
Engine Control Unit Software, Install (with SDS connected) (02-5639)
Control Unit (with SDS connected), Code (02-5382)
Fault Memory (with SDS connected), Read Out/Erase (02-5059)

WARRANTY INFORMATION - REPAIR 2

Damage Code	Operation Number	Labor Time (hrs.)	Model Indicator(s)
54 951 06 8	02-4762	0.2	Q6
	02-5058	0.1	Q6
	02-5638	0.1	Q6
	02-5639	0.2	Q6
	02-5382	0.2	Q6
	02-5059	0.2	Q6
