OEM Connector End Views -- 203 Chassis
>>
Connector End Views
>>
Overhead Control Panel Control Module Connector End View (N70)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Overhead Control Panel Control Module Connector End View (N70)

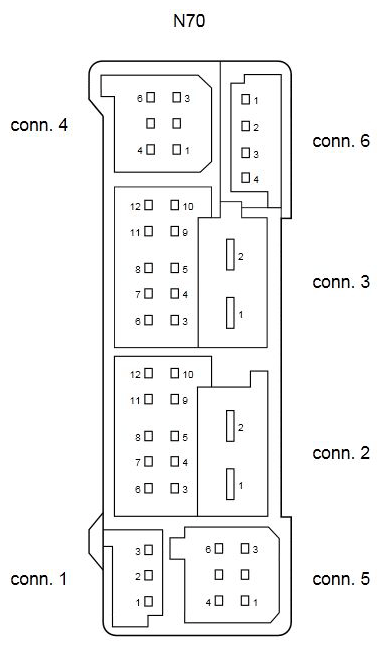

Fig 1: Overhead Control Panel Control Module Connector End View (N70)
Courtesy of MERCEDES-BENZ USA
