CDI control unit, location/task/function - GF07.16-P-3102IA
ENGINE 611.961 as of 1.6.99 in MODEL 210.006 /007 /206 /606
ENGINE 611.962 in MODEL 203.004 /006 /204 /206 /706
ENGINE 612.961 in MODEL 210.016 /216 /616
ENGINE 612.962 in MODEL 203.016 /216
ENGINE 612.963 in MODEL 163.113
ENGINE 613.960 in MODEL 220.026 /126
ENGINE 613.961 in MODEL 210.026 /226
ENGINE 612.990 in MODEL 203.018 /218 /718
ENGINE 612.967 in MODEL 209.316

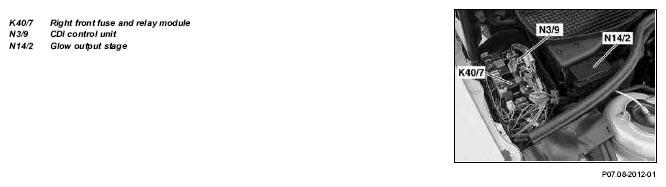

Shown on MODEL 220
| CDI control unit, location | Model 203, 209 | GF07.16-P-3102-01ID | |
| Model 210 | GF07.16-P-3102-01IB | ||
| Model 163 | GF07.16-P-3102-01IC | ||
| CDI control unit, task | GF07.16-P-3102-02I | ||
| CDI control unit, function | The CDI control unit (N3/9) is supplied with voltage by the fuse and relay module (N10/1 front SAM control unit with fuse and relay module (in model 203, 209)), (K40/4 passenger side fuse and relay module (in model 210)), (K40/7 right front fuse and relay module (in model 220)), (F1 fuse and relay module (in model 163)). It detects the input signals and actuates the outputs in line with the operating conditions. |
||
| Common rail diesel injection (CDI) control unit input/output signals | Model 210 | GF07.16-P-0001-04IC | |
| Model 203, 209 | GF07.16-P-0001-04IG | ||
| Model 203 AMG | GF07.16-P-0001-04IK | ||
| Model 220 | GF07.16-P-0001-04ID | ||
| Model 163 | GF07.16-P-0001-04IE |
