Correction programming, function - GF07.61-P-3031KE

ENGINE 271.921 in MODEL 203

ENGINE 271.940 in MODEL 203, 209

ENGINE 271.941 in MODEL 211

ENGINE 271.944 in MODEL 171

ENGINE 271.946 in MODEL 203

ENGINE 271.948 in MODEL 203

ENGINE 271.955 in MODEL 209

ENGINE 271.956 in MODEL 211

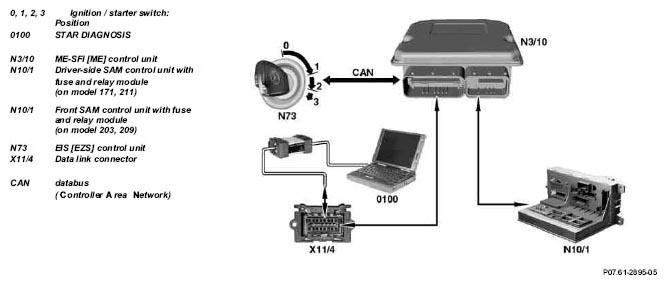

Fig 1: Correction Programming Function (Engine 271)

Different performance maps for the engine control can be stored and activated with the correction programming in the ME control unit.

The correction programming can be carried out with STAR Diagnosis when ignition is "ON", via the data link connector.

The following maps can be influenced:

• Ignition maps for adapting to different fuel quality (except )
• Mixture maps for enriching the air/fuel mixture in different operating states (except )
• idle speed with transmission mode engaged (on transmission 722)
• Fault setting conditions for rendering smooth engine running (recognition less sensitive)
