Smooth engine running analysis, function - GF07.61-P-3034KE
ENGINE 271.921 in MODEL 203
ENGINE 271.940 in MODEL 203, 209
ENGINE 271.941 in MODEL 211
ENGINE 271.944 in MODEL 171
ENGINE 271.946 in MODEL 203
ENGINE 271.948 in MODEL 203
ENGINE 271.955 in MODEL 209
ENGINE 271.956 in MODEL 211
Engine running is constantly monitored in order to protect the firewall catalytic converter from excessive thermal stresses if combustion misfiring occurs. If the smooth engine running analysis detects combustion misfiring in the ME control unit, the appropriate fuel injector or injectors is or are no longer actuated after a certain number of misfirings. However at least two fuel injection valves are deactivated simultaneously.
The following combustion misfiring causes are detected:
- Ignition system
- Injection system
- Mechanical engine systems (e.g. valve seats, valve springs, fresh air)
- Fuel deficiency
For the smooth engine running analysis the signal supplied by the crankshaft position sensor is analyzed exactly in respect of time uniformity between the individual combustions by means of a comprehensive mathematical method.
Each individual combustion must produce a characteristic acceleration at the flywheel.
In case of combustion misfirings, the flywheel mass rotates slightly slower until the next ignition (short variations in torque).

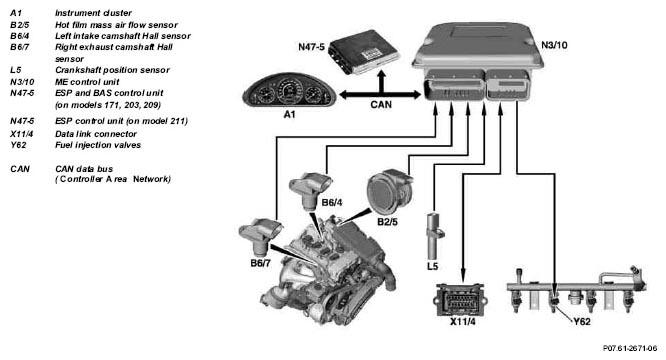

Smooth engine running signal
The following factors are taken into consideration for smooth running evaluation:
- Engine speed, engine load
- Recognition of uneven road surface
- Synchronization of fuel injection and firing order
- Fuel reserve signal
- Sensor adaptation (crankshaft position sensor)
- Sensitivity of the acceleration measurement (adjustable with the STAR DIAGNOSIS)
- Engine speed, engine load
A comparative value for the time between two combustions is calculated from these two parameters.
- Recognition of uneven road surface
Vibrations transmitted through the drive train may have a negative influence on engine running at certain engine speeds and load states.
Thus on poor road surfaces the smooth engine running analysis is set to more sensitive.
The wheel speed signal (for detection of even wheel running) is received by the ME control unit via the CAN data bus from the ESP control unit.
- Synchronization of fuel injection and firing order
The cylinder recognition is required for storing and -evaluation.
- Fuel reserve signal
If combustion misfiring has been detected, a fault is stored if the fuel tank level is too low. Combustion misfires due to fuel starvation are detected via this additional information. The ME control unit receives the information regarding the fuel level from the instrument cluster via the CAN data bus.
5th Sensor adaptation
After successful adaptation of the crankshaft position sensor, smooth engine running analysis becomes more sensitive and can be adapted to the specific smooth running properties of the engine.
During a deceleration phase (uniform smooth running) the smooth running analysis stores the particular smooth running properties of the engine. These are required as a comparison parameter for misfire detection.
6th Misfire counter
The number of detected misfires is entered in the fault memory and differs by:
- Misfiring of specific cylinders
- Misfiring at "emission limit"
- Misfiring "harmful to TWC"
The smooth engine running analysis replaces the measurement of the combustion period and combustion voltage.
| Fuel injection valves, component description | Y62 | GF07.03-P-6010KE | ||
| Crankshaft position sensor, component description | L5 | GF07.04-P-6010KE | ||
| Camshaft Hall sensor, component description | B6/4, B6/7 | GF07.04-P-6020KE | ||
| Hot film mass air flow sensor, component description | B2/5 | GF07.07-P-6000KE | ||
| ME-SFI [ME] control unit, component description | N3/10 | GF07.61-P-6000KE | ||
| Component description of ignition coil | T1/1-T1/4 | GF15.10-P-2100KE | ||
| Accelerator pedal sensor, component description | B37 | GF30.20-P-2010KE | ||
| Component description of fuel level sensor | B4 | Model 171 | GF47.10-P-2010KE | |
| B4/1, B4/2 | Model 203, 209, 211 |
