Driver/passenger side airbag, location/task/design/function - GF91.60-P-4004PP
MODEL 203
Shown on Model 203.0

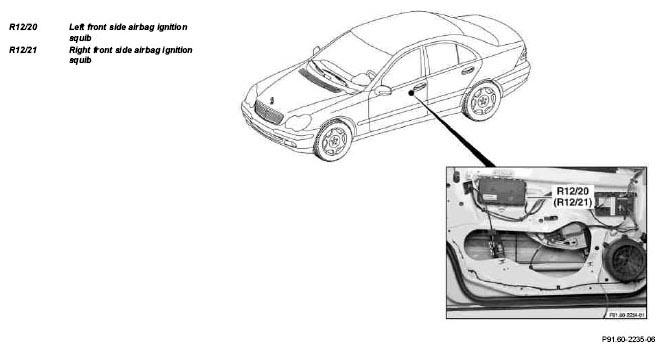

| Driver's/front passenger's side airbag, location | The left or right side airbag with the attendant left front side airbag ignition squib (R12/20) or the right front side airbag ignition squib (R12/21) is located in the driver's or front passenger's door. | ||
| Driver's/front passenger's side airbag - task | The side airbag protects the driver and/or front passenger from upper body and head injuries in the event of a side-impact collision affecting the door and B-pillar areas. The protective effect of the side airbag is improved by the window airbag. |
||
| Driver's/front passenger's side airbag, design | GF91.60-P-4004-03S | ||
| Driver's/front passenger's side airbag - function | GF91.60-P-4004-02S |
