Front passenger airbag, location/task/design/function - GF91.60-P-4003PP
MODELS 203.0/ 2/ 7
Illustrated on Models 203.0, 203.2

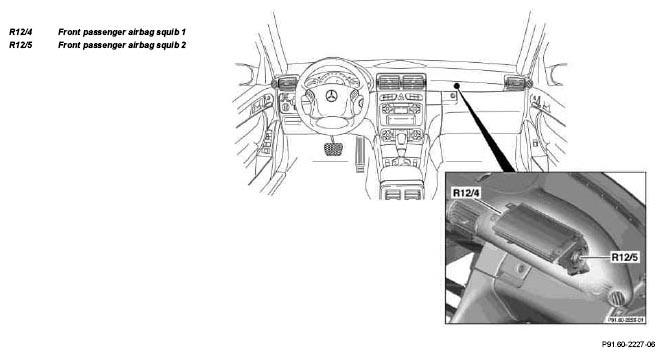

| Passenger airbag, location | The front passenger airbag with the front passenger airbag squib 1 (R12/4) and front passenger airbag squib 2 (R12/5) are integrated into the instrument panel above the glove compartment. | ||
| Passenger airbag, task | The passenger airbag serves to protect the driver from injury in the event of a head-on collision. When a crash occurs, the airbag inflates within approximately 50 msec to fill the space between the instrument panel and the passenger and thus stops the forward movement of the passenger's body. | ||
| Passenger airbag, design | GF91.60-P-4003-03PP | ||
| Passenger airbag, function | GF91.60-P-4003-02PP |
