Head-On Collision - Function - GF91.60-P-2006PM

MODELS 203.0 /2 /7 as of 24.4.04 except CODE (494a) USA version

MODELS 203.0 /2 as of 24.4.04 up to 31.5.04 with CODE (494a) USA version

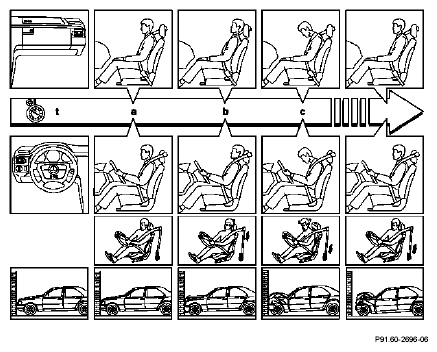

Behavior of the buckle emergency tensioning retractors if a moderately severe head-on collision occurs

Fig 1: Behavior Of The Buckle Emergency Tensioning Retractors - Severe Head-On Collision - Models 203.0 /2 /7 As Of 24.4.04 Except Code (494A) And Models 203.0 /2 As Of 24.4.04 Up To 31.5.04 With Code (494A)

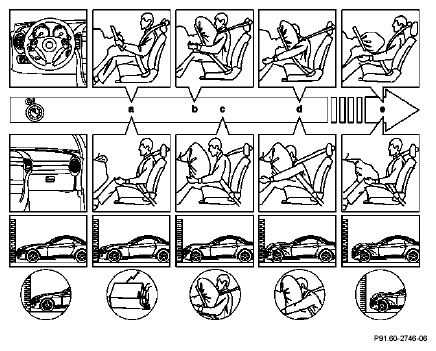

Behavior of driver airbag and buckle emergency tensioning retractor if a severe head-on collision occurs

Fig 2: Behavior Of Driver Airbag And Buckle Emergency Tensioning Retractor - Severe Head-On Collision - Models 203.0 /2 /7 As Of 24.4.04 Except Code (494A) And Models 203.0 /2 As Of 24.4.04 Up To 31.5.04 With Code (494A)

Moderately severe head-on collision

If a moderately severe head-on collision occurs the restraint systems control unit (N2/7) registers moderate deceleration via the integrated acceleration sensors. In this type of impact the restraining function of the seat belts in combination with the buckle emergency tensioning retractors ensure the maximum degree of passenger safety. The restraint systems control unit (N2/7) therefore sends an ignition pulse to the following components:

Driver ETR squib (R12/1)
Passenger ETR squib (R12/2)
Left rear ETR squib (R12/6)
Right rear ETR squib (R12/7)

Severe head-on collision

If a severe head-on collision occurs the restraint systems control unit (N2/7) registers extreme deceleration via the integrated acceleration sensors. In this type of impact the airbag and seat belt system restraining functions in combination with the emergency tensioning retractors ensure the best possible degree of passenger safety.

The restraint systems control unit (N2/7) therefore sends an ignition pulse to the following components:

Driver airbag squib 1 (R12/13)
Passenger airbag squib 1 (R12/4)
Driver ETR squib (R12/1)
Passenger ETR squib (R12/2)
Left rear ETR squib (R12/6)
Right rear ETR squib (R12/7)

If also necessary because of the severity of the accident:

Driver airbag squib 2 (R12/14)
Front passenger airbag squib 2 (R12/5)

If, over the passenger seat occupied and child seat recognition sensor (B48) a child seat mounted to the front passenger seat has been recognized, the front passenger airbag will never be deployed.

If the driver seat belt buckle restraint systems switch (S68/3) or the front passenger seat belt buckle restraint systems switch (S68/4) detects that a seat belt has not been fastened, the driver or front passenger airbag is triggered instead of the relevant emergency tensioning retractor at a brought-forward point in time.

	Supplemental restraint systems control unit, location/task/design		GF91.60-P-4018PM
	Driver's Airbag, location/task/design/function		GF91.60-P-4001PP
	Front passenger airbag, location/task/design/ function		GF91.60-P-4003PP
	Seat occupancy monitor with child-restraint recognition feature, location/task/design/ function		GF91.60-P-4008PP
	SRS airbag malfunction indicator lamp, location/task		GF91.60-P-4011PM
	Airbag OFF indicator lamp, location/task		GF91.60-P-4012PM
	Seat Belt Buckle Switch, location/task		GF91.60-P-4013PP
