Command valve, function - GF27.60-P-5138-04G

Transmission 722.6

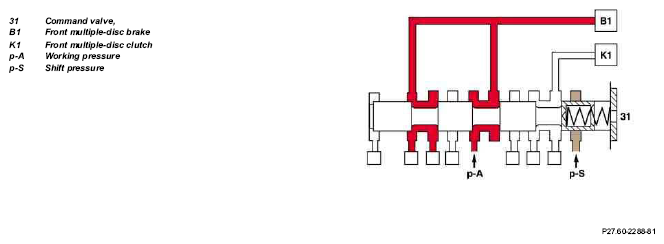

1-2/4-5 command valve shown Stationary phase (B1 engaged, K1 disengaged)

Fig 1: Command Valve Function Diagram, Stationary Phase (B1 Engaged, K1 Disengaged) - Transmission 722.6

1-2/4-5 command valve shown

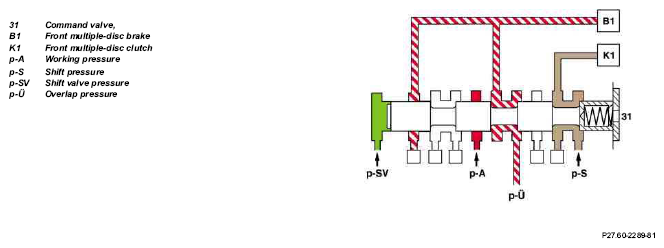

Shift phase (B1 disengaging, K1 engaging)

Fig 2: Command Valve Function Diagram, Shift Phase (B1 Disengaging, K1 Engaging) - Transmission 722.6

Operation

When the end face is unpressurized (stationary phase), the working pressure is directed to the actuated shift element.

If the end face of the command valve (31) is subjected to shift valve pressure (p-SV) (shift phase), then the shift pressure (p-S) is switched to the engaging element and the overlap pressure (p-U) is switched to the disengaging element.
