Float, location/function - GF27.10-P-5107N

TRANSMISSION 722.9 in MODEL 171.4,

TRANSMISSION 722.9 in MODEL 463.30

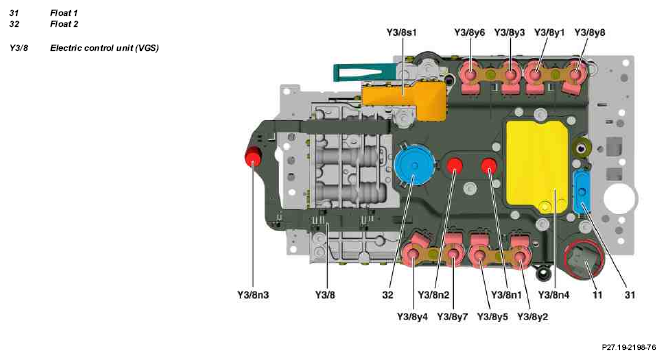

Fig 1: Identifying Float 1, Float 2 And Electrical Control Unit Location - Transmission 722.9

	Float, location	Float 1 (31) and float 2 (32) are accommodated in the electric control unit (VGS) (Y3/8).
	Float, function	As the oil level rises, float 1 (31) and float 2 (32) seal the openings between the oil chamber and the gear set chamber.
